Arduino Board

• Base Material
• FR4

• Board Thickness
• 1.6 mm

• Board Type
• Other, Compact USB-C Nano

• Color
• Blue

• Copper Thickness
• 1 oz

• Electrical Components
• ATmega328P, female headers, ICSP header

• Flame Resistance Level
• UL94-V0

• Hole Size
• 0.8 mm

• Impedance
• No controlled impedance

• Insulation Resistance
• >10^12

• Min. Line Spacing
• 0.15 mm

• Min. Line Width
• 0.15 mm

• Number Of Layers
• Other, 2

• Panel Size
• Standard Nano form factor

• Product Type

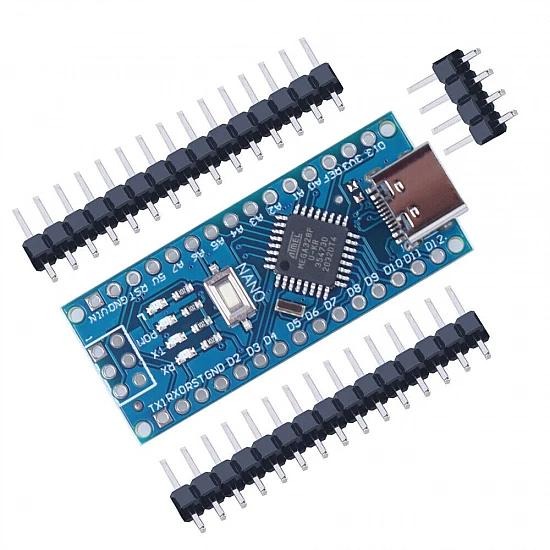

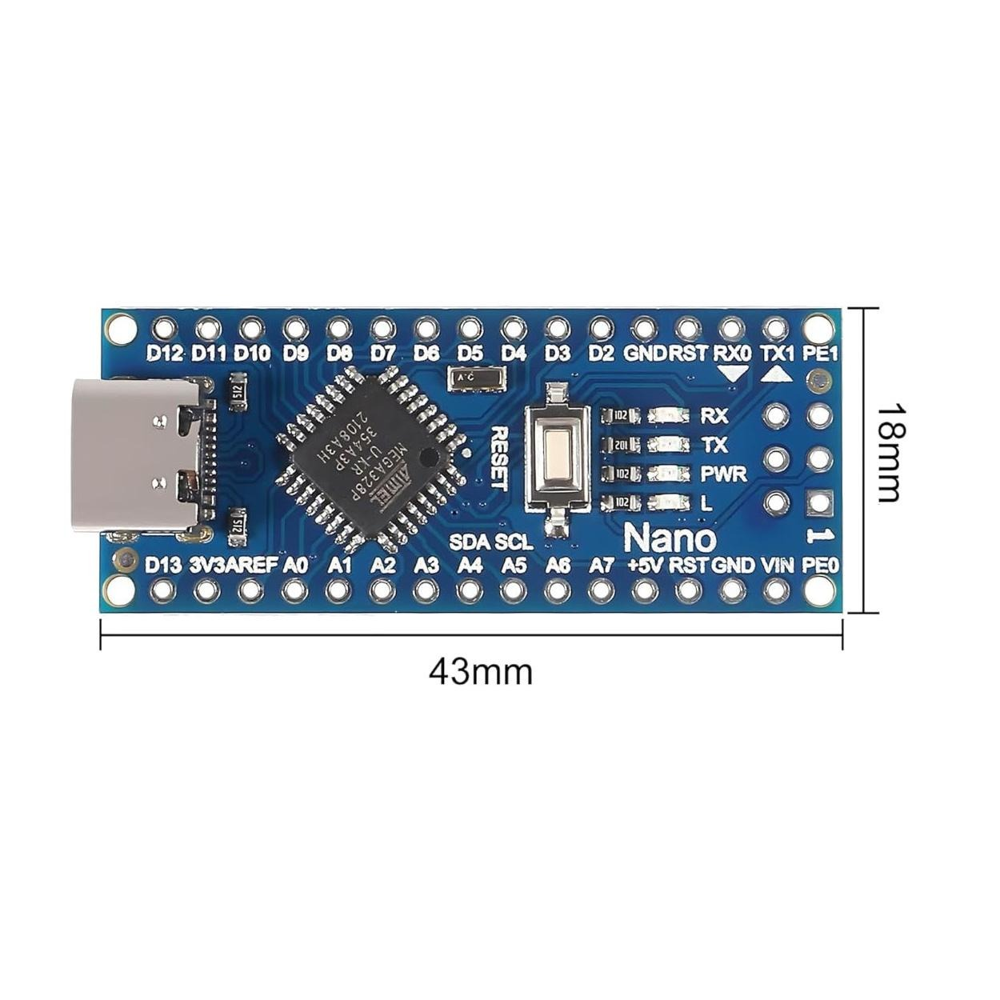

• Nano Board Type-C ATmega328P Compact USB-C Development Board

• Sensor Switch
• Not included

• Silkscreen
• Other

• Soldermask
• Blue

• Surface Finish
• HASL

• Test
• Other

• Voltage Endurance
• 250V AC

• Base Material
• Other

• Board Type
• Other, Single Board

• Color
• Black

• Electrical Components

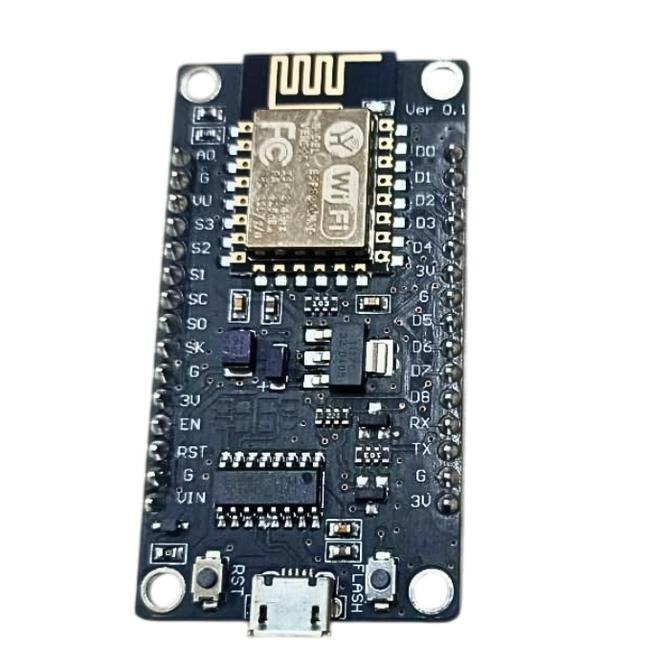

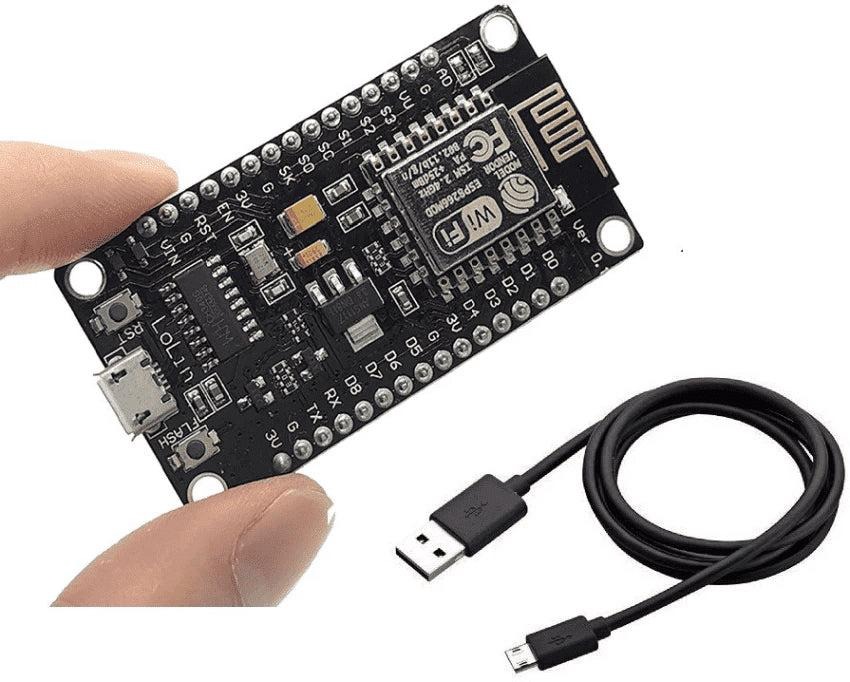

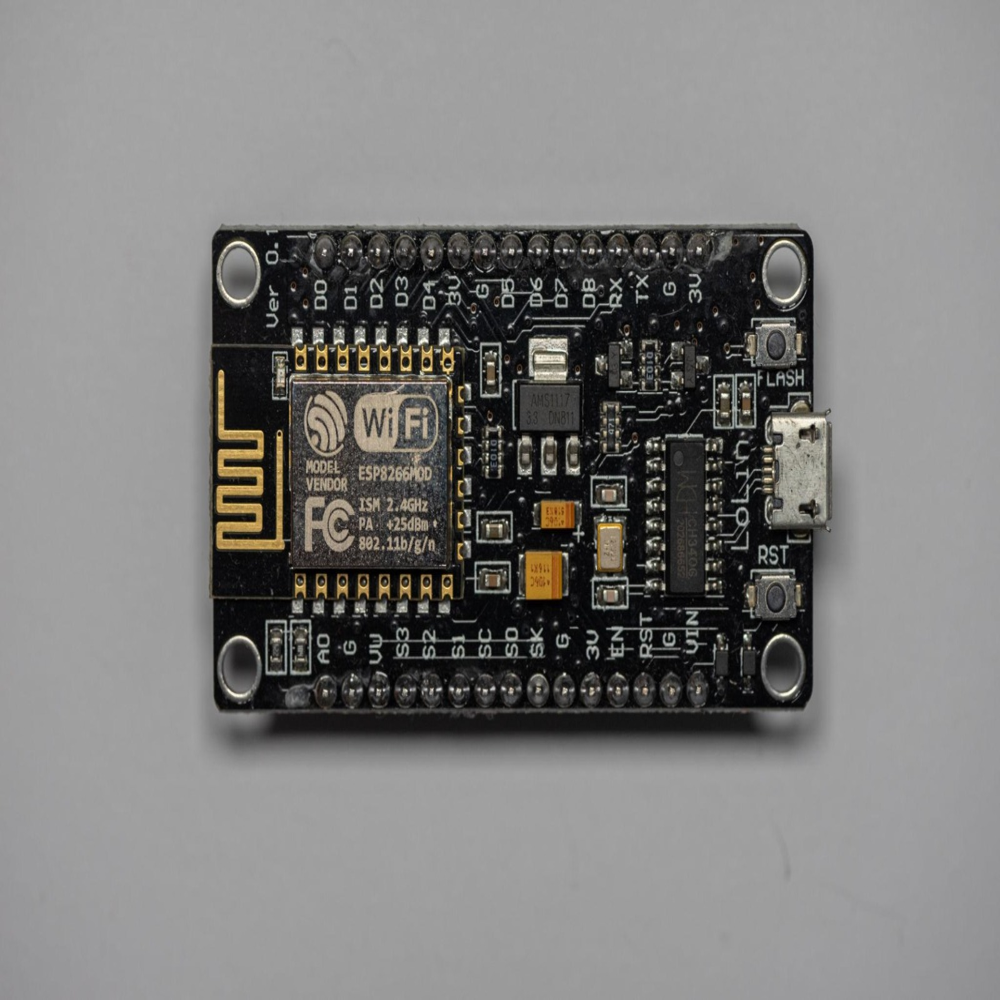

• ESP8266 SoC, SMD Parts, Micro-USB Port

• Number Of Layers
• Other, 2 Layers

• Panel Size
• 58 mm x 31 mm (Approx.)

• Product Type
• Microcontroller Development Board

• Silkscreen
• White

• Soldermask
• Other

• Surface Finish
• HASL

• Test
• Other

• Voltage Endurance
• 5V USB Powered

• Application
• Single Phase Rectification

• Base Material
• Alumunium

• Board Type
• Other

• Color
• Metallic

• Components
• KBPC3510, Metal Case

• Current Rating
• 35A

• Dimension (L*W*H)
• Approx. 28.8mm 28.8mm 7.0mm

• Electrical Components
• Microcontroller, CH340 USB Interface

• Flame Resistance Level
• 94V-0

• Function
• Bridge Rectifier Diode

• Input
• AC

• Number Of Layers
• Other

• Operating Temperature
• -55C to +150C

• Output
• DC

• Power Supply
• AC to DC Conversion

• Product Type
• Bridge Rectifier

• Rated Voltage
• 1000 Volts (Peak Reverse Voltage - VRRM)

• Sensor Switch
• No

• Silkscreen
• White

• Soldermask
• Blue

• Surface Finish
• HASL

• Test
• Other

• Base Material
• Other

• Board Thickness
• 1.6 mm

• Board Type
• Other, Single PCB, Pro Mini compatible

• Color
• Blue

• Copper Thickness
• 1 oz/ft2

• Electrical Components
• ATmega328PB, voltage regulator, LEDs, header pins

• Flame Resistance Level
• UL 94V-0

• Hole Size
• 1 mm (typical)

• Impedance
• Not controlled

• Insulation Resistance
• >100 M

• Min. Line Spacing
• 0.15 mm

• Min. Line Width
• 0.15 mm

• Number Of Layers
• Other, 2

• Panel Size
• 18 33 mm approx.

• Product Type

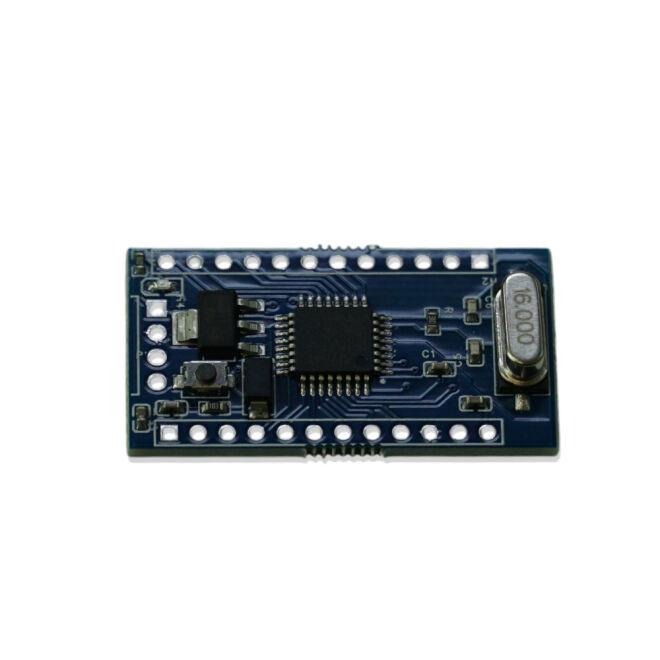

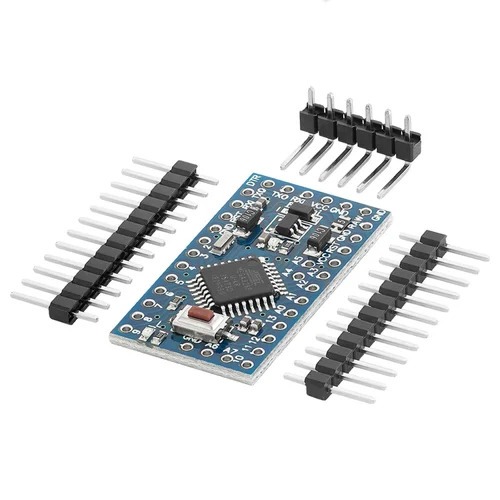

• Pro Mini Board

• Sensor Switch
• Not included

• Silkscreen
• White

• Soldermask
• Blue

• Surface Finish
• HASL

• Test
• Other

• Voltage Endurance
• 50 VDC (typical)

• Base Material
• FR4

• Board Thickness
• 1.6 mm (typical PCB)

• Board Type
• Other, Single Sided Printed Circuit Board (PCB)

• Color
• Other

• Copper Thickness
• 1 oz (common value for modules)

• Electrical Components
• SMD/Through-hole electronic components soldered

• Flame Resistance Level
• 94V-0

• Hole Size
• 0.8mm ~ 1.2mm (approximate)

• Impedance
• N/A (not impedance controlled)

• Insulation Resistance
• 10^6 M

• Min. Line Spacing
• 0.2mm

• Min. Line Width
• 0.2mm (typical for such PCBs)

• Number Of Layers
• Other, 1 Layer (Single-sided PCBs)

• Panel Size
• Standard Small Modules (Varies per sensor)

• Product Type

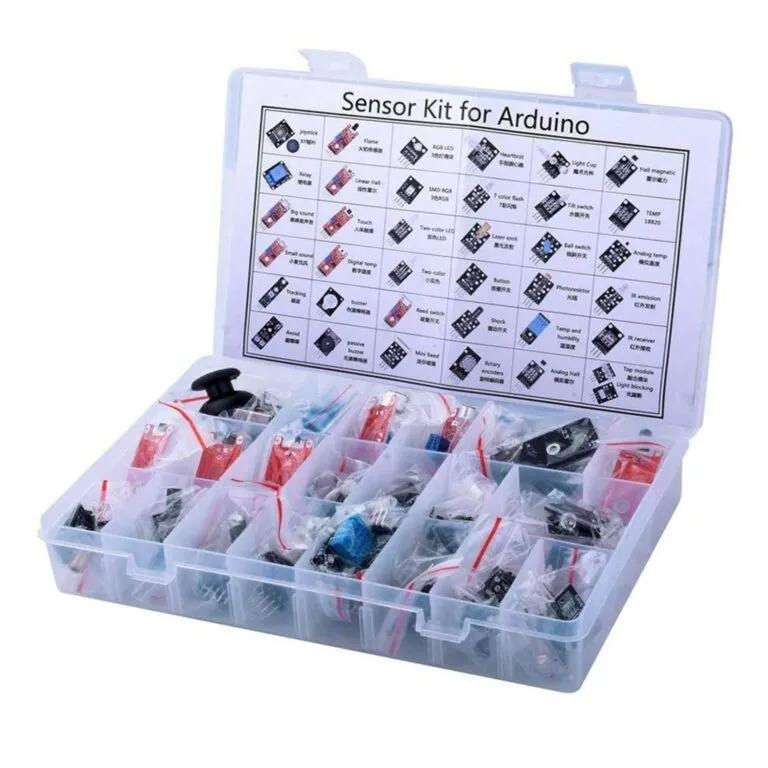

• Sensor Module Board Set

• Sensor Switch
• Included (variety of sensor switches)

• Silkscreen
• Other

• Soldermask
• Other

• Surface Finish
• Other

• Test
• Other

• Voltage Endurance
• DC 5V typical (varies per module)

• Base Material
• FR4

• Board Thickness
• 1.6 mm

• Board Type
• Other, Single Board

• Color
• Blue

• Copper Thickness
• 1 oz

• Electrical Components
• Sockets, headers, chips pre-mounted

• Flame Resistance Level
• UL94 V-0

• Hole Size
• 0.3 mm minimum

• Impedance
• Controlled (Optional)

• Insulation Resistance
• > 10^12

• Min. Line Spacing
• 0.2 mm

• Min. Line Width
• 0.2 mm

• Number Of Layers
• Other, 2 Layers

• Panel Size
• Standard (100mm x 100mm approx.)

• Product Type

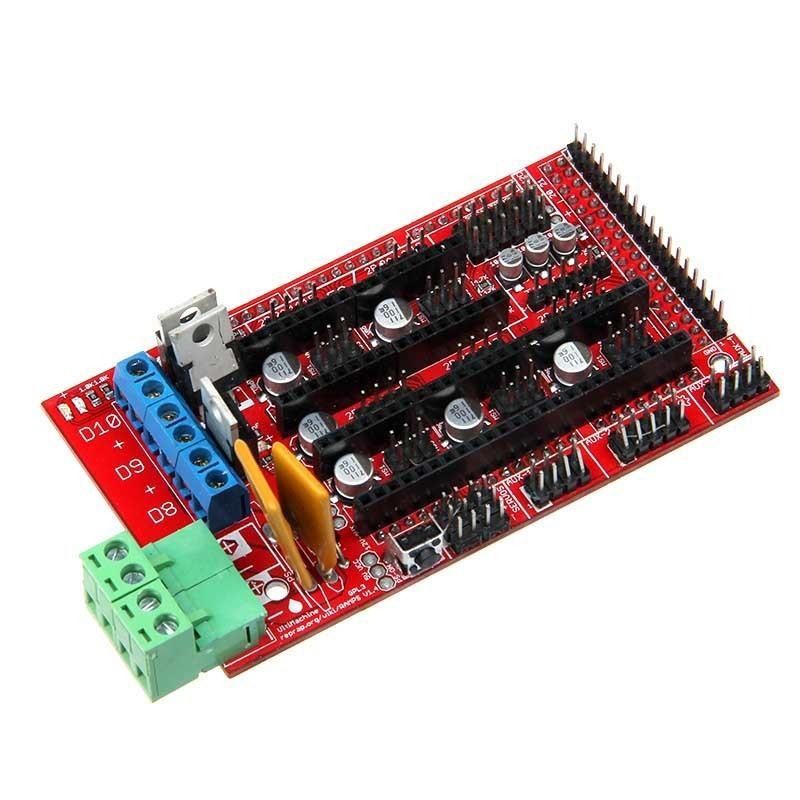

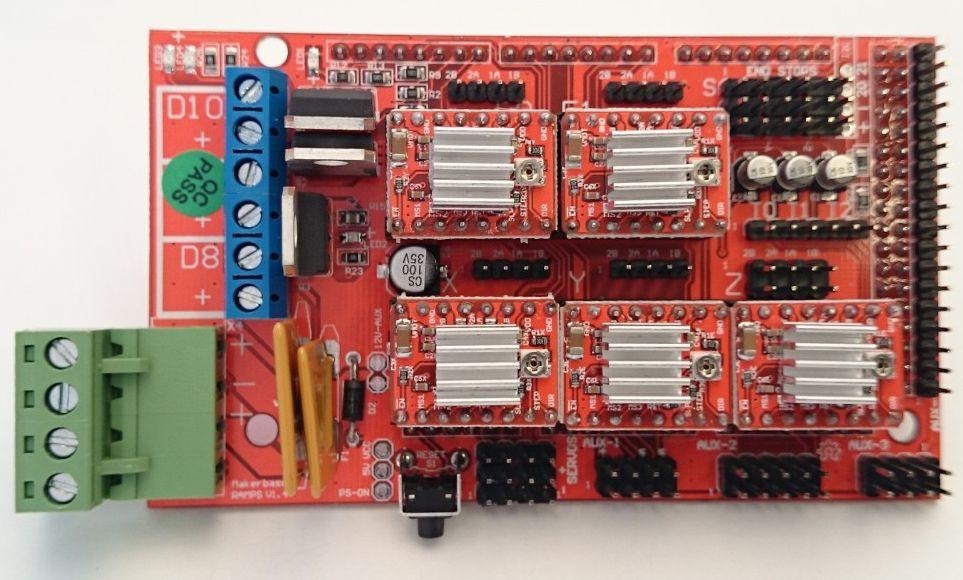

• 3D Printer Controller Board

• Sensor Switch
• Limit Switch Support

• Silkscreen
• White

• Soldermask
• Other

• Surface Finish
• Other

• Test
• Other

• Voltage Endurance
• 250V AC

• Board Type
• Other

• Color
• Blue

• Electrical Components
• ATmega328P, voltage regulator, crystal oscillator

• Frequency
• 50 Hertz (HZ)

• Phase
• 3 Phase

• Product Type

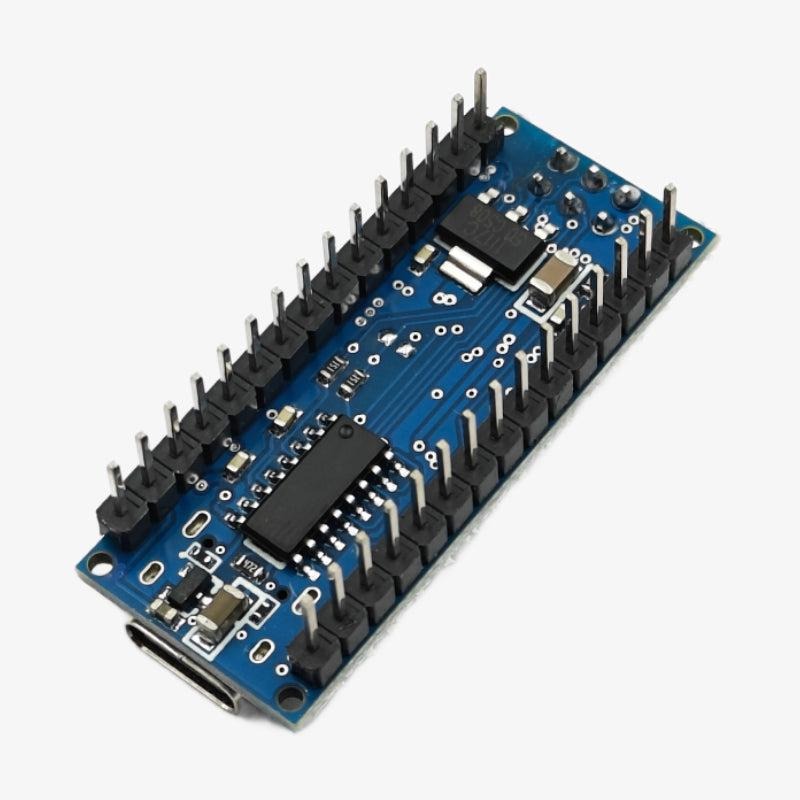

• C Type Nano Board

• Warranty
• 1 Year

• Base Material
• FR4

• Board Thickness
• 1.6 mm

• Board Type
• Other, Double sided PCB

• Color
• Red

• Copper Thickness
• 35 um

• Electrical Components
• Pin headers, Terminals, Stepper Driver Sockets

• Flame Resistance Level
• UL94-V0

• Hole Size
• 1 mm

• Impedance
• Not Controlled

• Insulation Resistance
• > 10^12

• Min. Line Spacing
• 0.2 mm

• Min. Line Width
• 0.2 mm

• Number Of Layers
• Other, 2 Layers

• Panel Size
• 68 mm x 53 mm

• Product Type

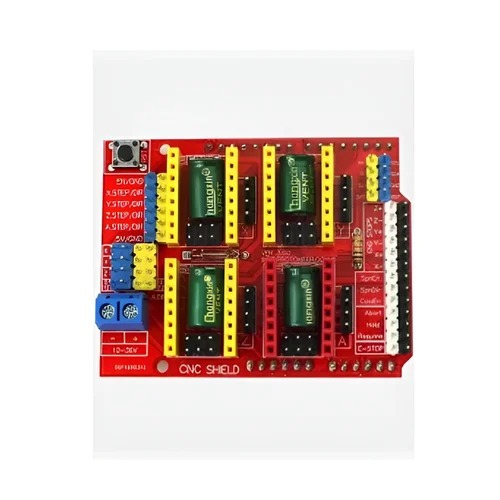

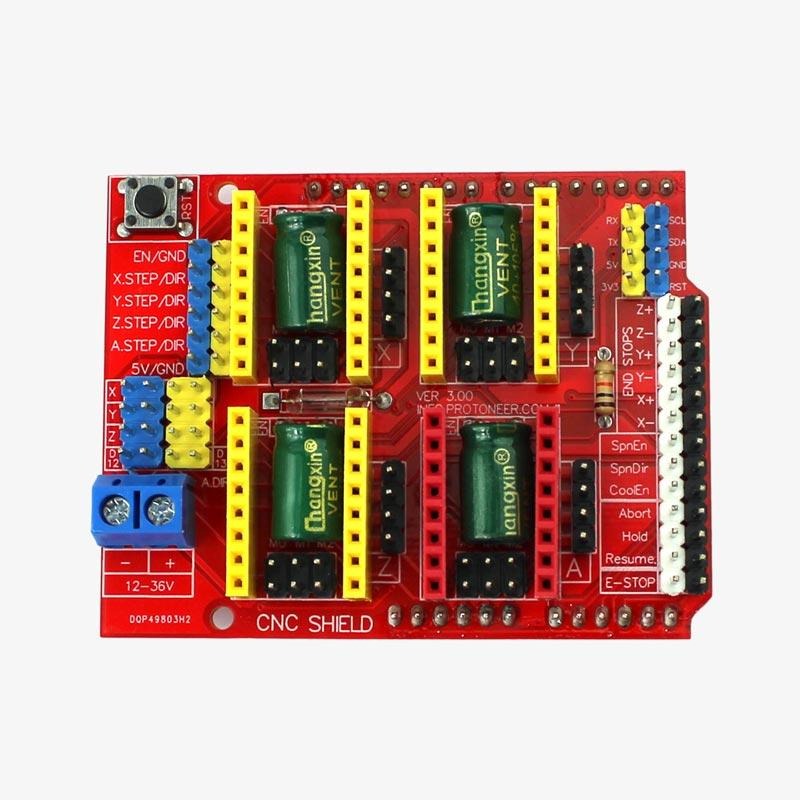

• CNC Shield Board

• Sensor Switch
• No

• Silkscreen
• Other

• Soldermask
• Other

• Surface Finish
• Other

• Test
• Other

• Voltage Endurance
• 250 VDC
