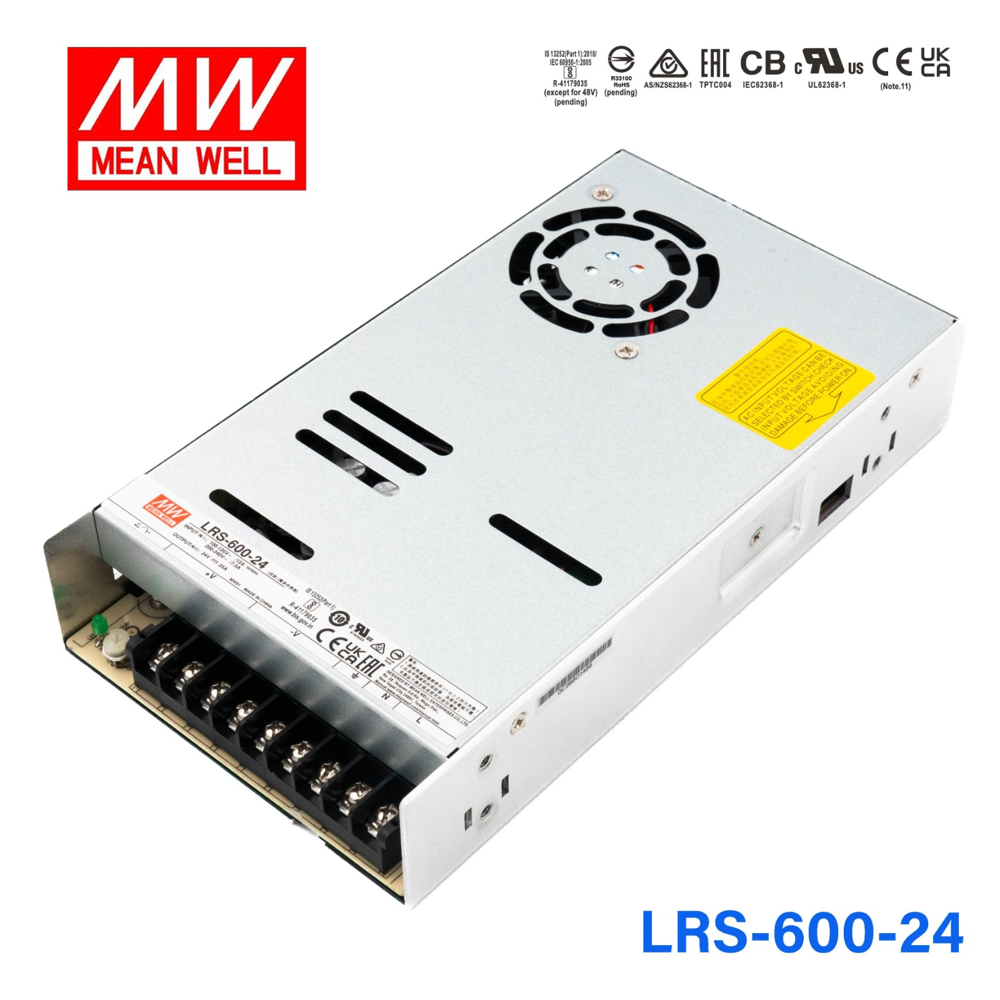

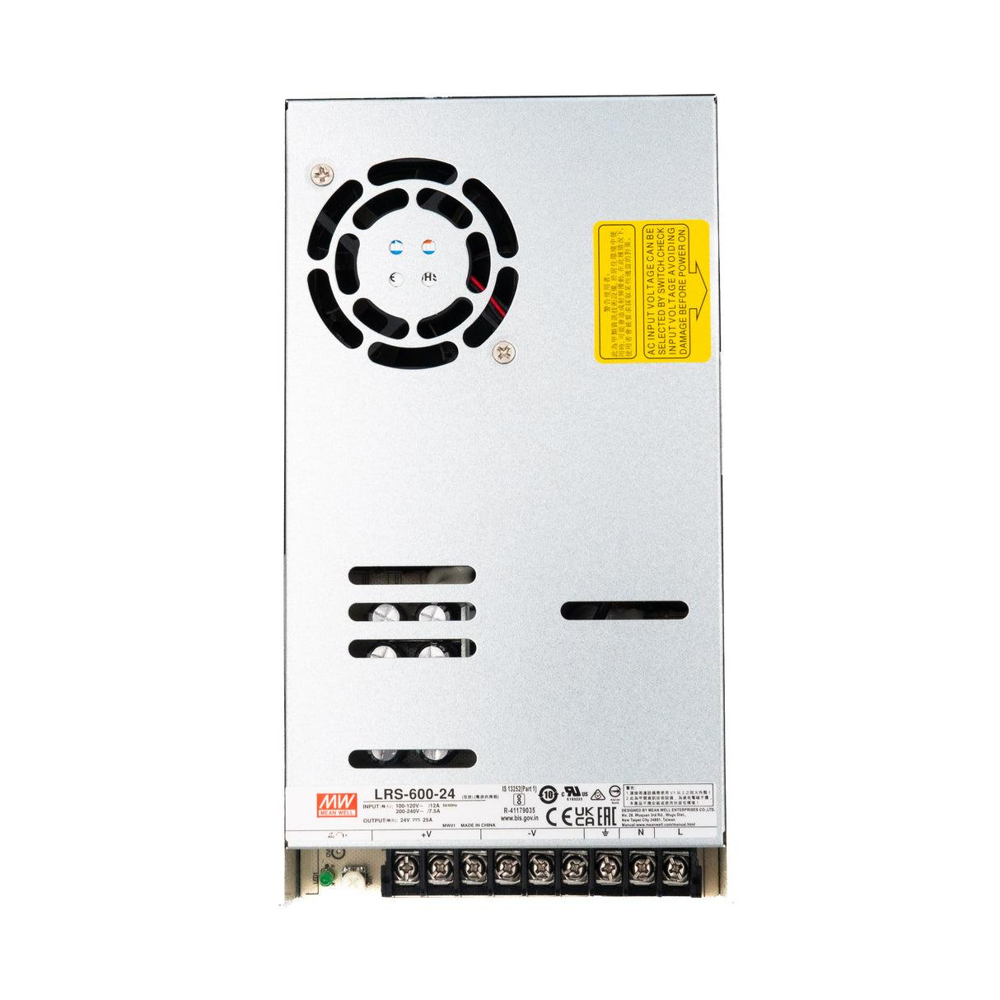

Switch Mode Power Supply

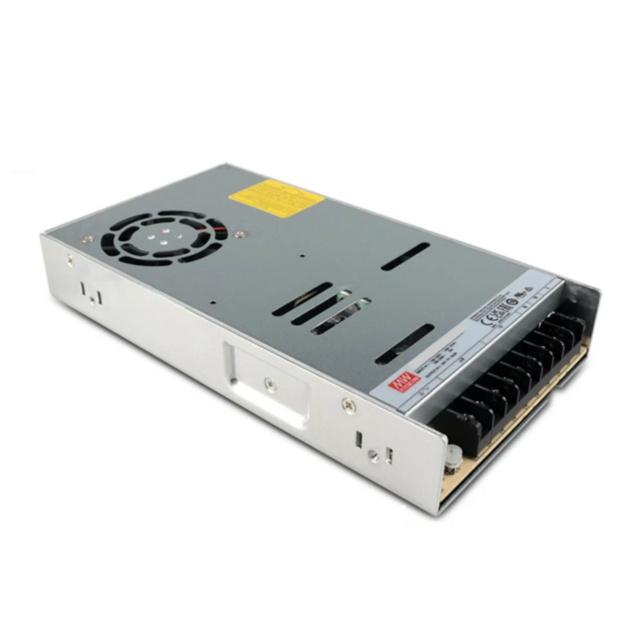

• Application
• Industrial Automation, CNC Machines, LED Lighting

• Connector Type
• Screw terminal block

• Cooling Method
• Forced air with built-in fan

• Current Range
• 0-25A

• Efficiency
• Up to 91.5%

• Features
• High efficiency, Multiple protections, Compact size

• Input Voltage
• 90-264V AC / 254-370V DC

• Line Regulation
• 0.5%

• Material
• Enclosed Metal Housing

• Noise Level
• <60 dB

• Operating Temperature
• -30C to +70C

• Output Current
• 25A

• Output Frequency
• 50/60 Hz

• Output Power
• 600 W

• Output Type
• Single

• Phase
• Single Phase

• Power Factor
• >0.95

• Power Supply
• AC/DC

• Product Type
• Switch Mode Power Supply (SMPS)

• Rated Current
• 25A

• Rated Power
• 600W

• Storage Temperature
• -40C to +85C

• Voltage Protection
• Overload, Overvoltage, Over-temperature, Short Circuit

• Weight
• Approx. 1.33 kg

• Working Temperature
• -30C to +70C

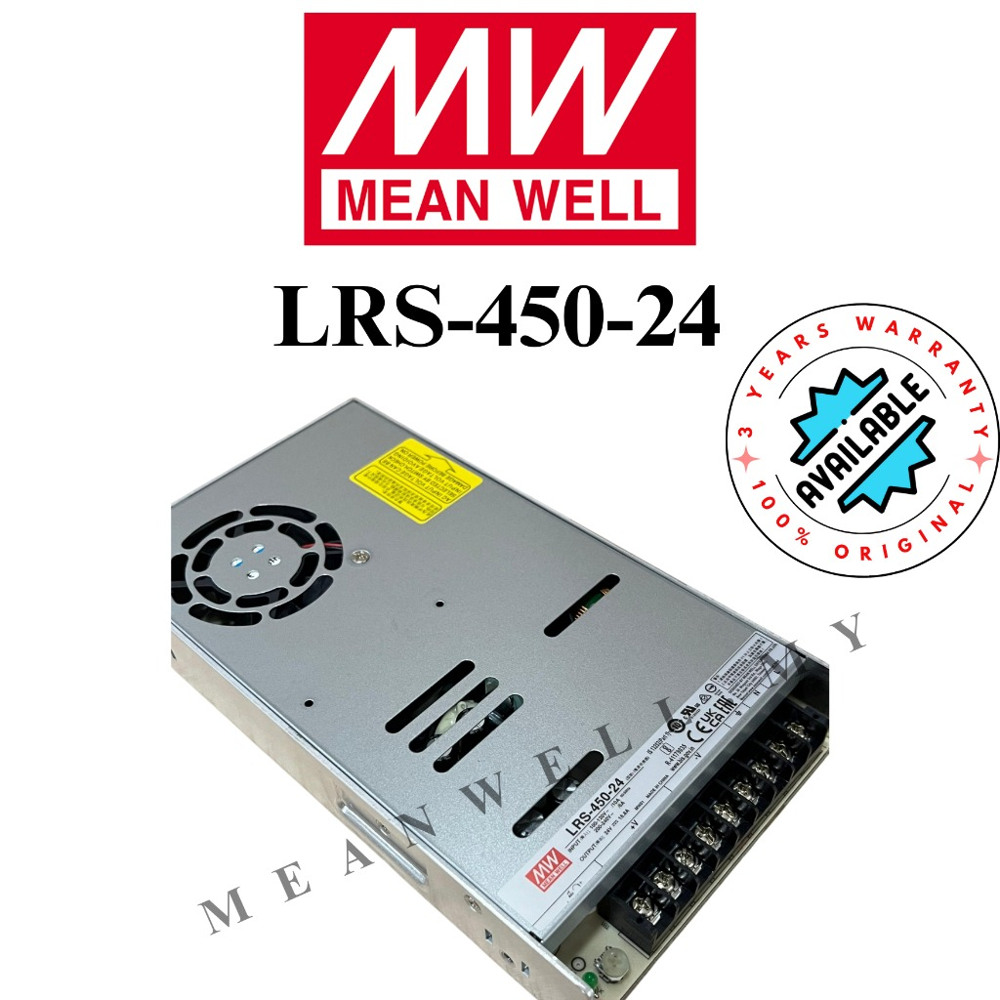

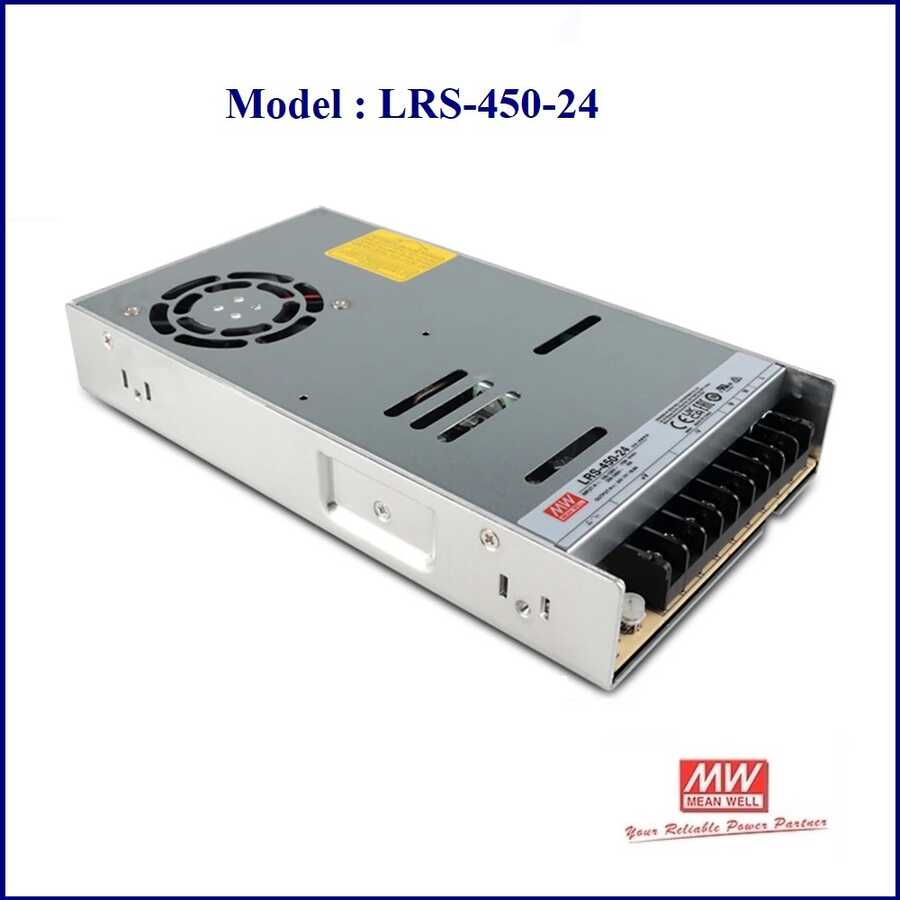

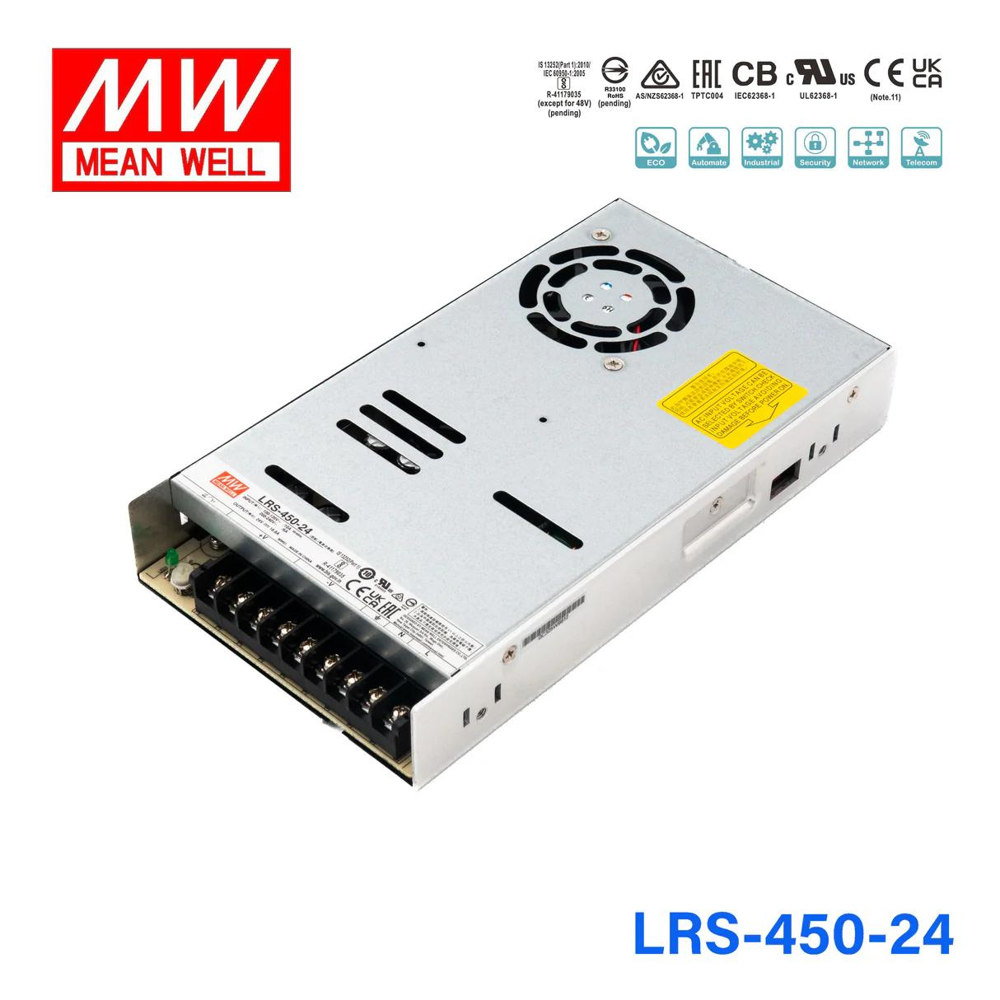

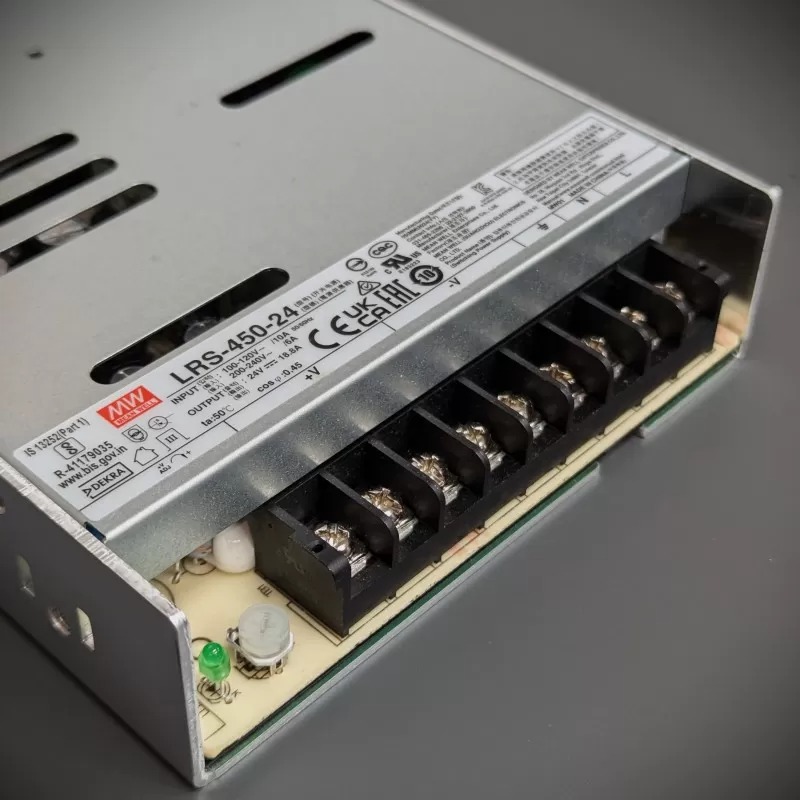

• Application
• Industrial automation, LED, instrumentation

• Connector Type
• Screw terminal

• Cooling Method
• Temperature-controlled fan

• Current Range
• 0 - 18.8A

• Efficiency
• Up to 90%

• Features
• Built-in active PFC, protections: short circuit, overload, overvoltage, overtemperature

• Input Voltage
• 90-132VAC / 180-264VAC (selectable), 254-370VDC

• Line Regulation
• 0.5%

• Material
• Enclosed metal housing

• Noise Level
• 150mVp-p ripple & noise

• Operating Temperature
• -25C to +70C

• Output Current
• 18.8A

• Output Frequency
• 50/60 Hz

• Output Power
• 451.2W (Max)

• Output Type
• Single

• Phase
• Single Phase

• Power Factor
• >0.95 (typical)

• Power Supply
• AC-DC

• Product Type
• Switching Mode Power Supply (SMPS)

• Rated Current
• 18.8A

• Rated Power
• 450W

• Storage Temperature
• -30C to +70C

• Voltage Protection
• Short circuit

• Weight
• Approx. 1.1 kg

• Working Temperature
• -25C to +70C

• Connector Type
• Screw Terminal

• Cooling Method
• Convection

• Efficiency
• up to 90%

• Input Voltage
• 85-264V AC

• Material
• Enclosed

• Output Current
• 5A

• Output Frequency
• 50/60Hz

• Output Power
• 480W

• Output Type
• Single

• Power Factor
• >0.95

• Product Type
• Switching Mode Power Supply (SMPS)

• Rated Current
• 5A

• Rated Power
• 480W

• Weight
• Approx. 730g

• Input Voltage
• 85-264V AC

• Material
• Enclosed

• Output Current
• 5A

• Output Power
• 480W

• Output Type
• Single

• Product Type
• SMPS

• Rated Current
• 5A

• Rated Power
• 480W

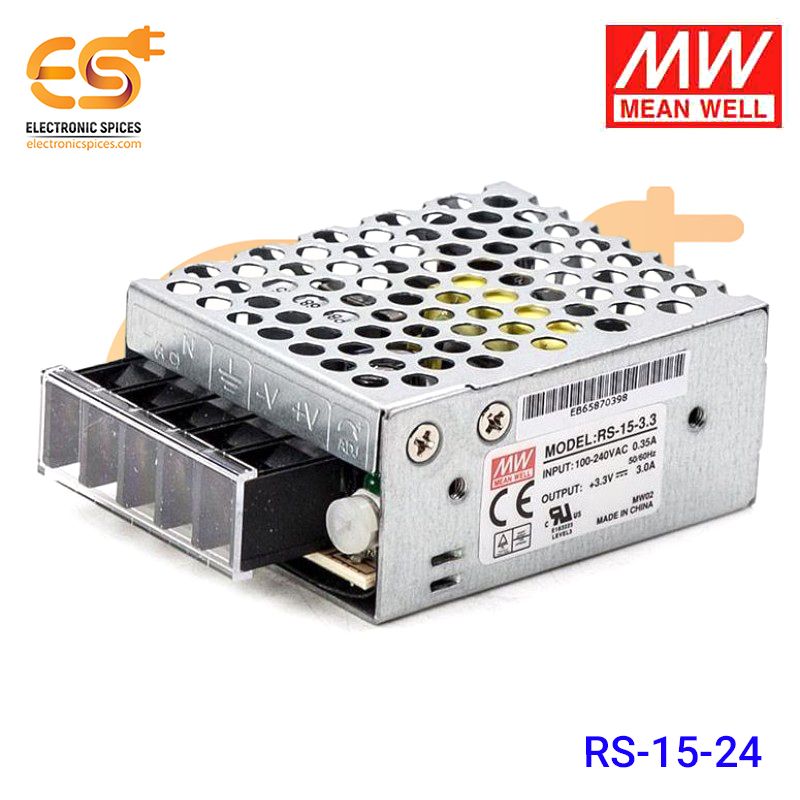

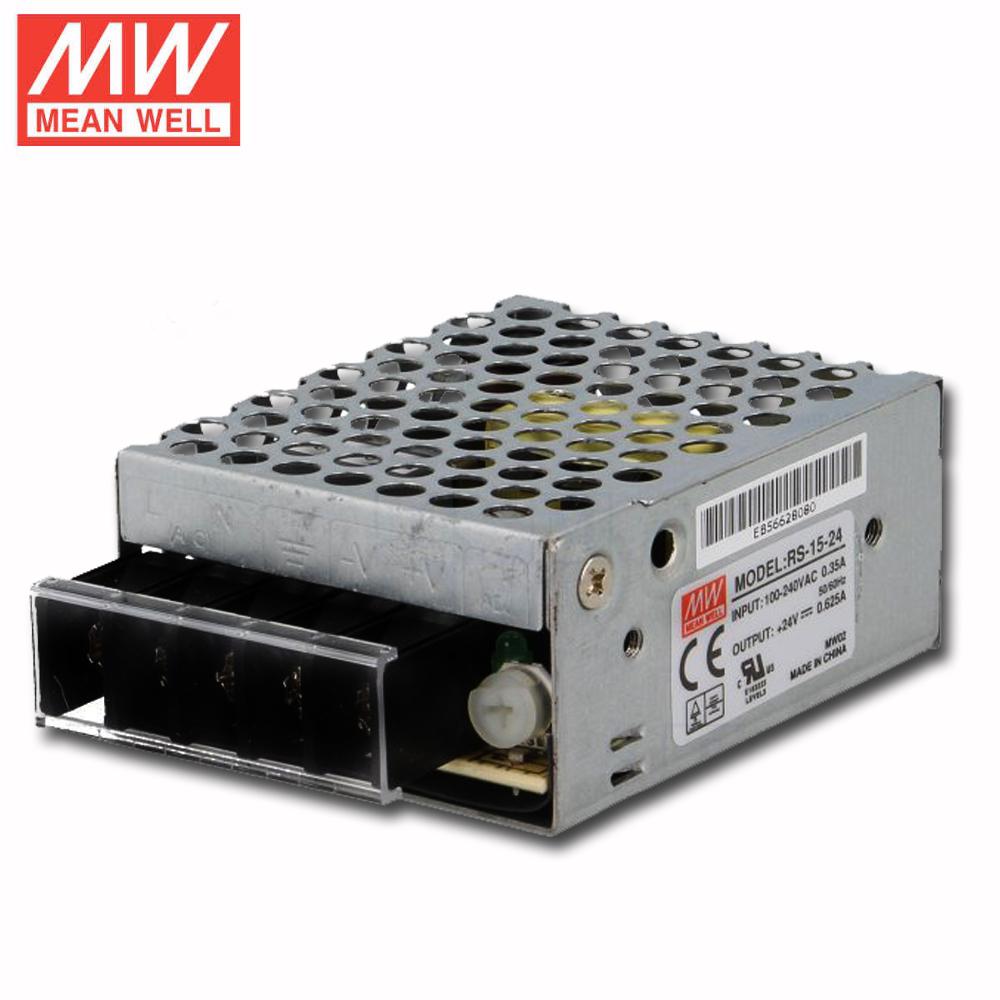

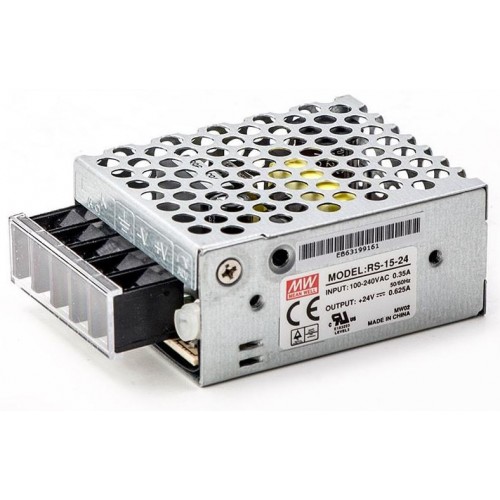

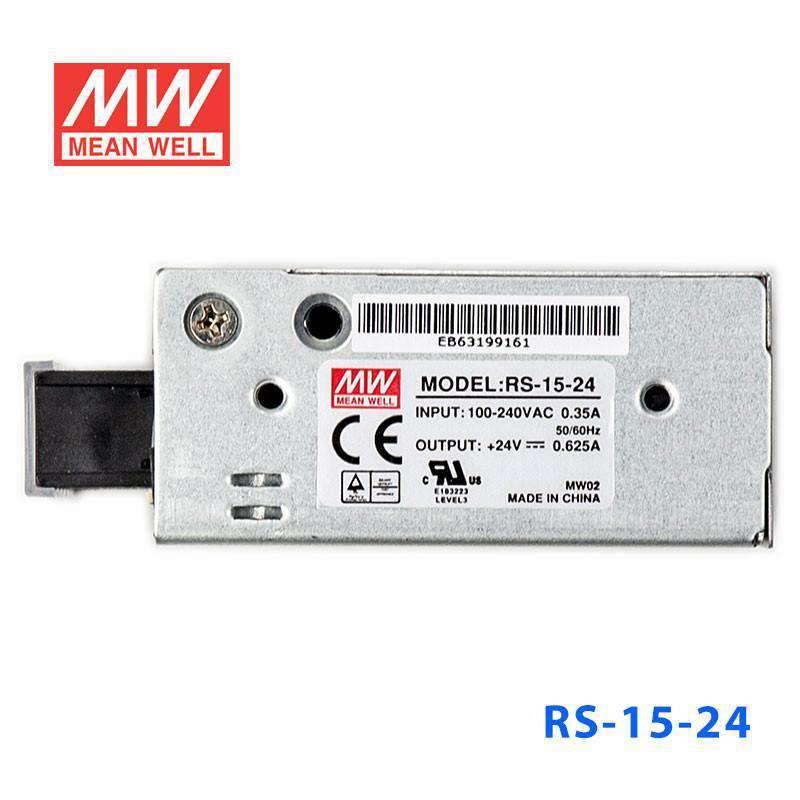

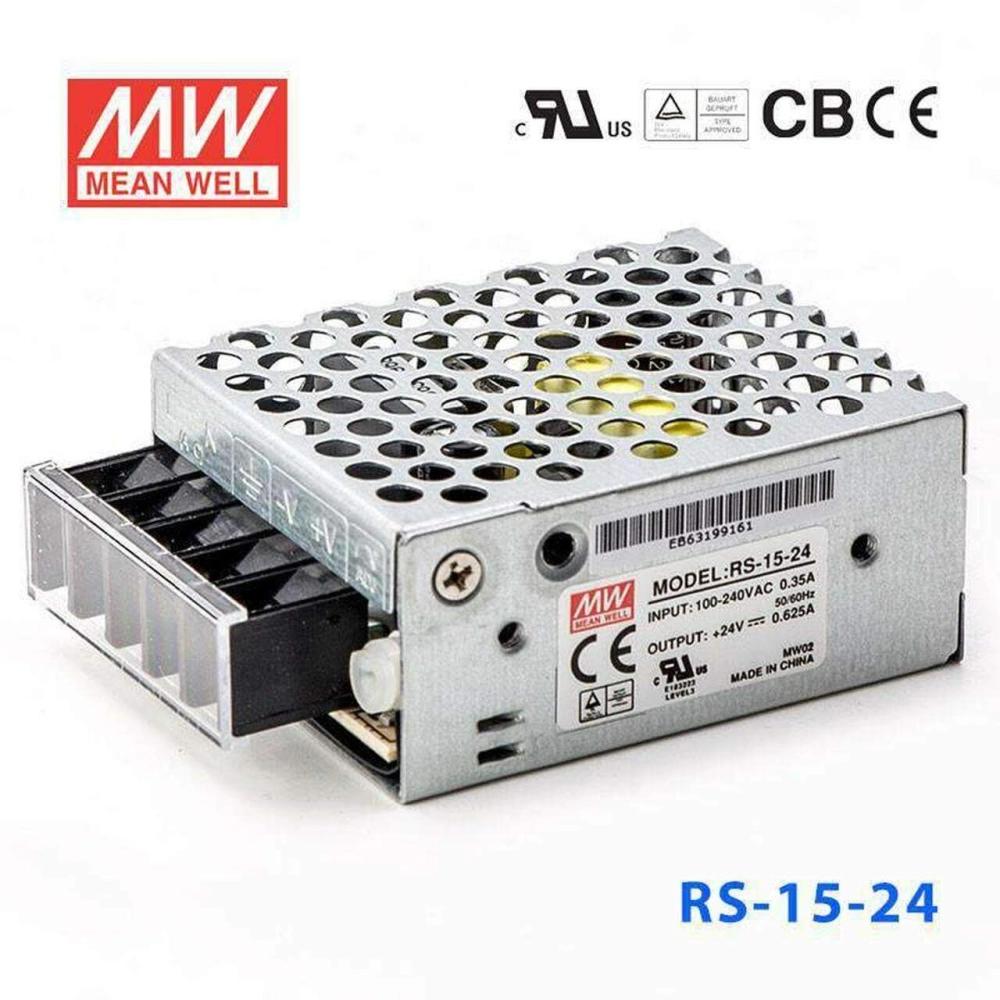

• Application
• Industrial automation, control panels

• Connector Type
• Screw Terminal

• Cooling Method
• Free air convection (fanless)

• Current Range
• 0-0.63A

• Efficiency
• Up to 82%

• Features
• High reliability, compact, RoHS compliant

• Input Voltage
• 85-264V AC / 120-373V DC

• Line Regulation
• 0.5%

• Material
• Metal Enclosure

• Noise Level
• <50mVp-p

• Operating Temperature
• -20C to +60C

• Output Current
• 0.63A

• Output Frequency
• 47-63Hz

• Output Power
• 15W

• Output Type
• Single

• Phase
• Single Phase

• Power Factor
• >0.5

• Power Supply
• AC-DC

• Product Type
• Switching Power Supply

• Rated Current
• 0.63A

• Rated Power
• 15W

• Storage Temperature
• -40C to +85C

• Voltage Protection
• Short circuit, overload, over-voltage

• Weight
• Approx. 90g

• Working Temperature
• -20C to +60C

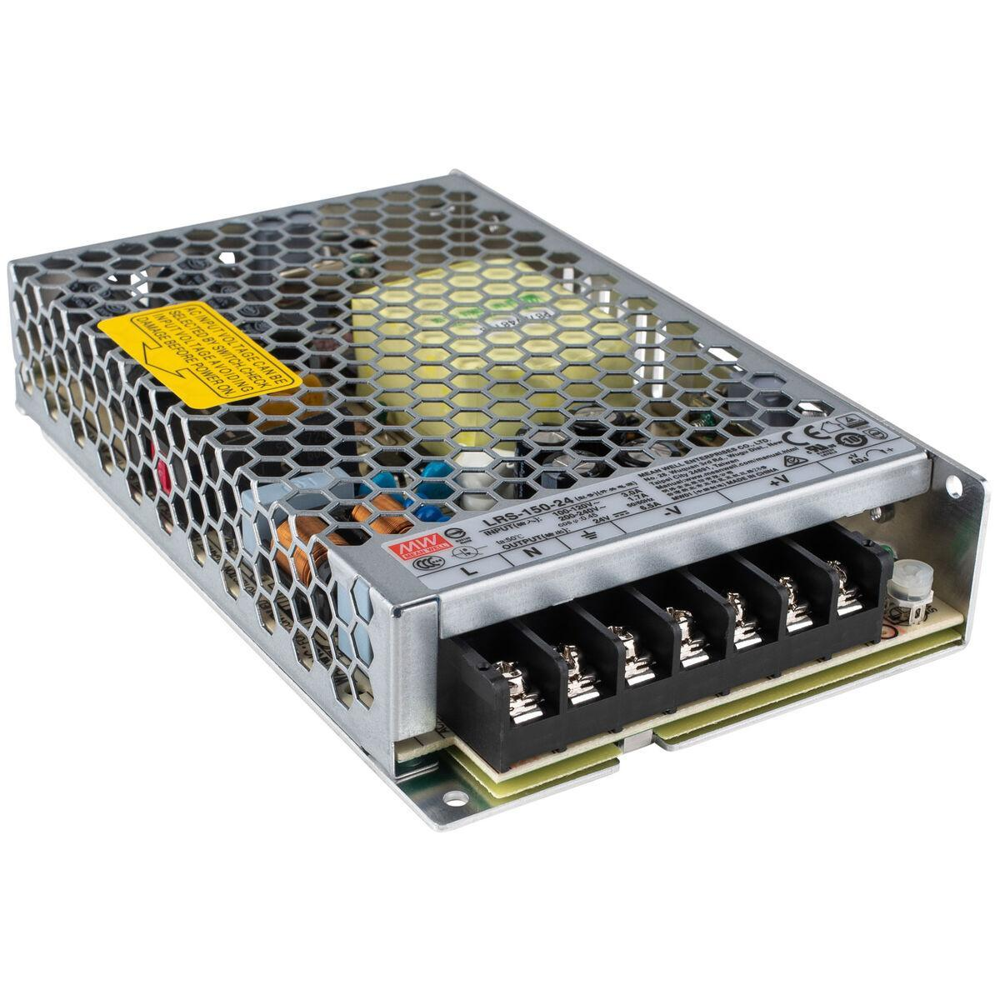

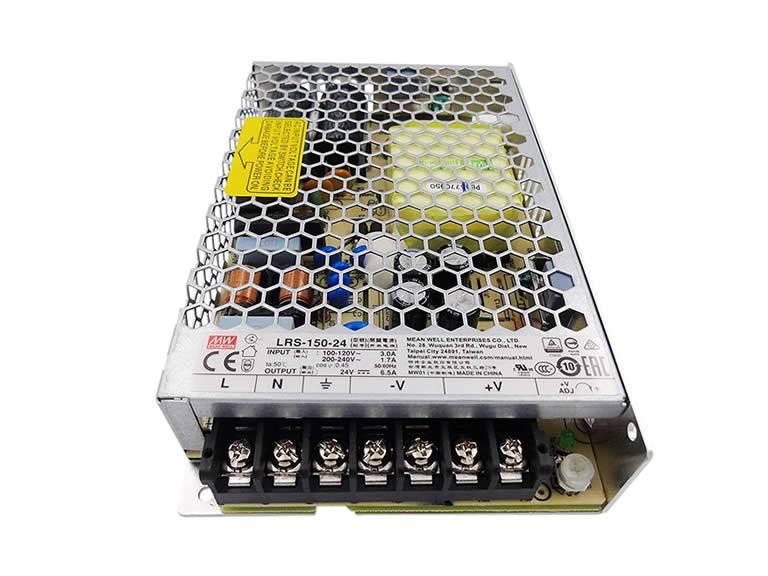

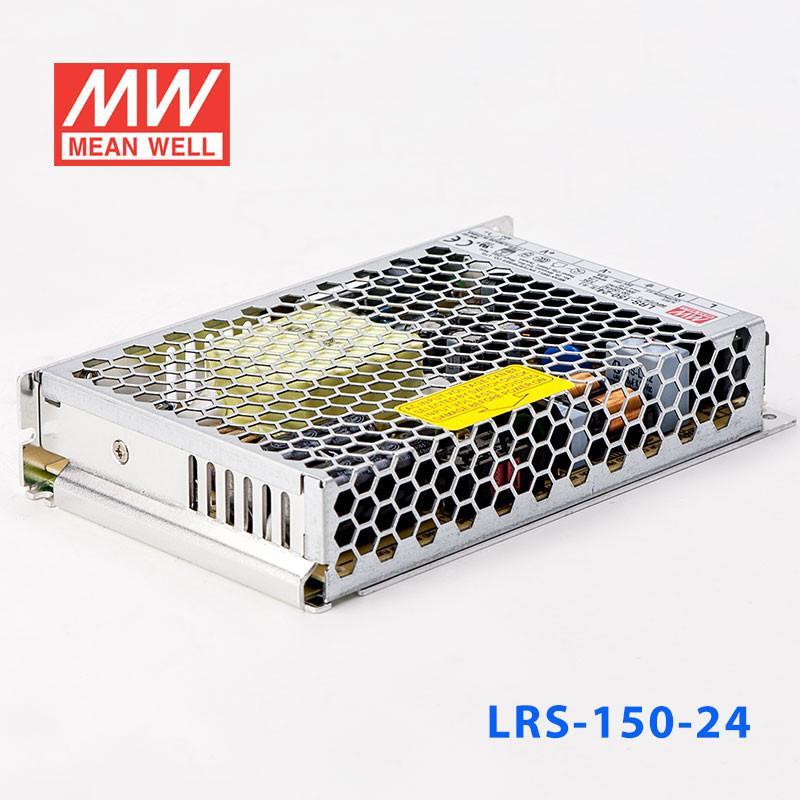

• Application
• Industrial automation, LED, instrumentation, telecommunications

• Connector Type
• Screw terminal

• Cooling Method
• Convection cooled

• Current Range
• 0-6.5A

• Efficiency
• Up to 90%

• Features
• Fanless, convection cooled, ultra-low standby power

• Input Voltage
• 85-132VAC / 170-264VAC selectable, up to 300VAC surge (5s)

• Line Regulation
• <0.5%

• Material
• Metal case

• Noise Level
• <50mVp-p (typical)

• Operating Temperature
• -30C to +70C

• Output Current
• 6.5A

• Output Frequency
• DC (no frequency, 24V)

• Output Power
• 156W max, 150W nominal

• Output Type
• Other, Single Output

• Phase
• Single Phase

• Power Factor
• >0.5

• Power Supply
• AC-DC

• Product Type
• Switch Mode Power Supply (SMPS)

• Rated Current
• 6.5A

• Rated Power
• 150W

• Storage Temperature
• -40C to +85C (typical)

• Voltage Protection
• Short circuit, overload, over-voltage, over-temperature

• Weight
• approx. 530g

• Working Temperature
• -30C to +70C (with derating)

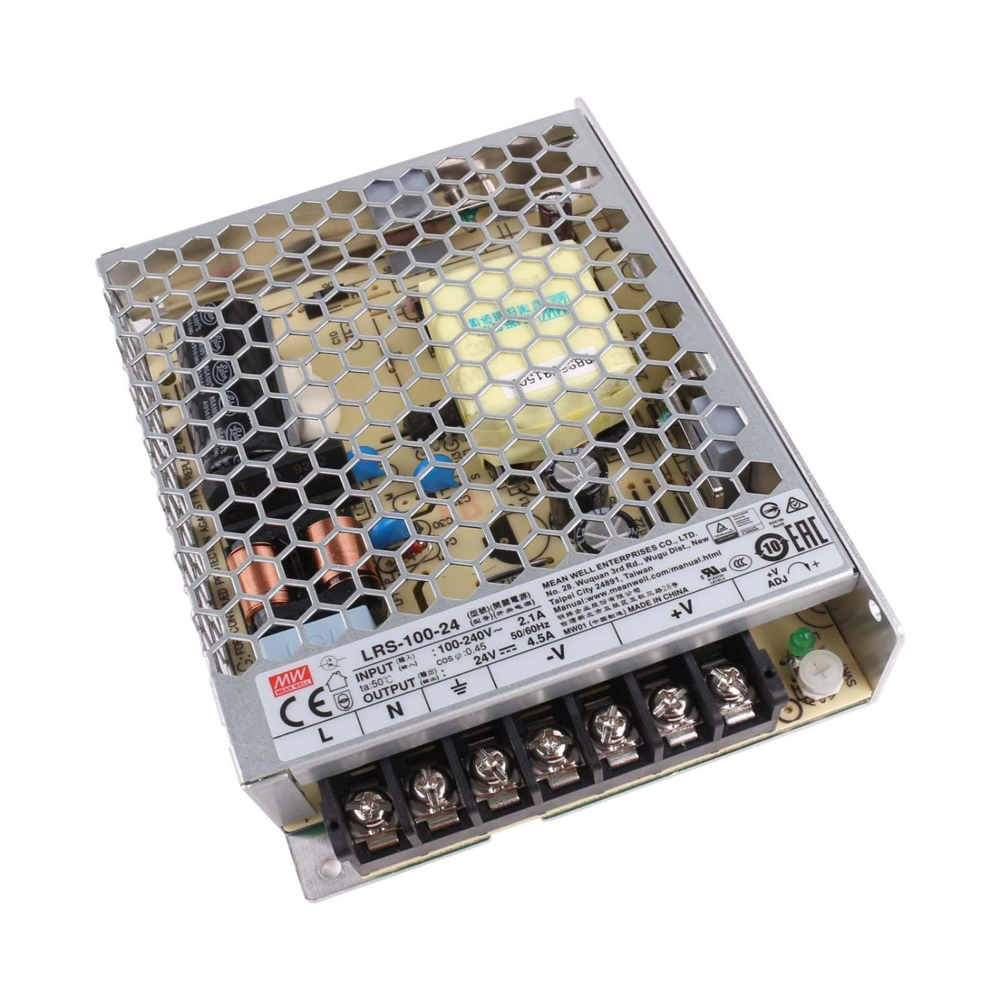

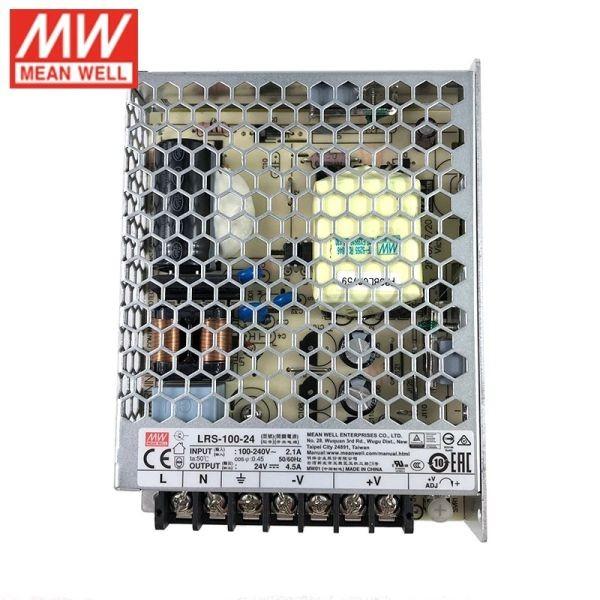

• Application
• Industrial Automation, LED Lighting, Security Systems

• Connector Type
• Screw Terminal

• Cooling Method
• Convection Cooled

• Current Range
• 0 ~ 4.5A

• Efficiency
• Up to 89%

• Features
• Compact, Low Profile, Fanless

• Input Voltage
• 85 ~ 264VAC / 120 ~ 373VDC

• Line Regulation
• 0.5%

• Material
• Metal Enclosure

• Noise Level
• <30mVp-p

• Operating Temperature
• -30C ~ +70C

• Output Current
• 4.5A

• Output Frequency
• 47~63Hz

• Output Power
• 100W

• Output Type
• Single

• Phase
• Single Phase

• Power Factor
• >0.5

• Power Supply
• AC-DC

• Product Type
• Switching Power Supply

• Rated Current
• 4.5A

• Rated Power
• 100W

• Storage Temperature
• -40C ~ +85C

• Voltage Protection
• Overload, Overvoltage, Overtemperature, Short Circuit

• Weight
• 340g approx.

• Working Temperature
• -30C ~ +70C

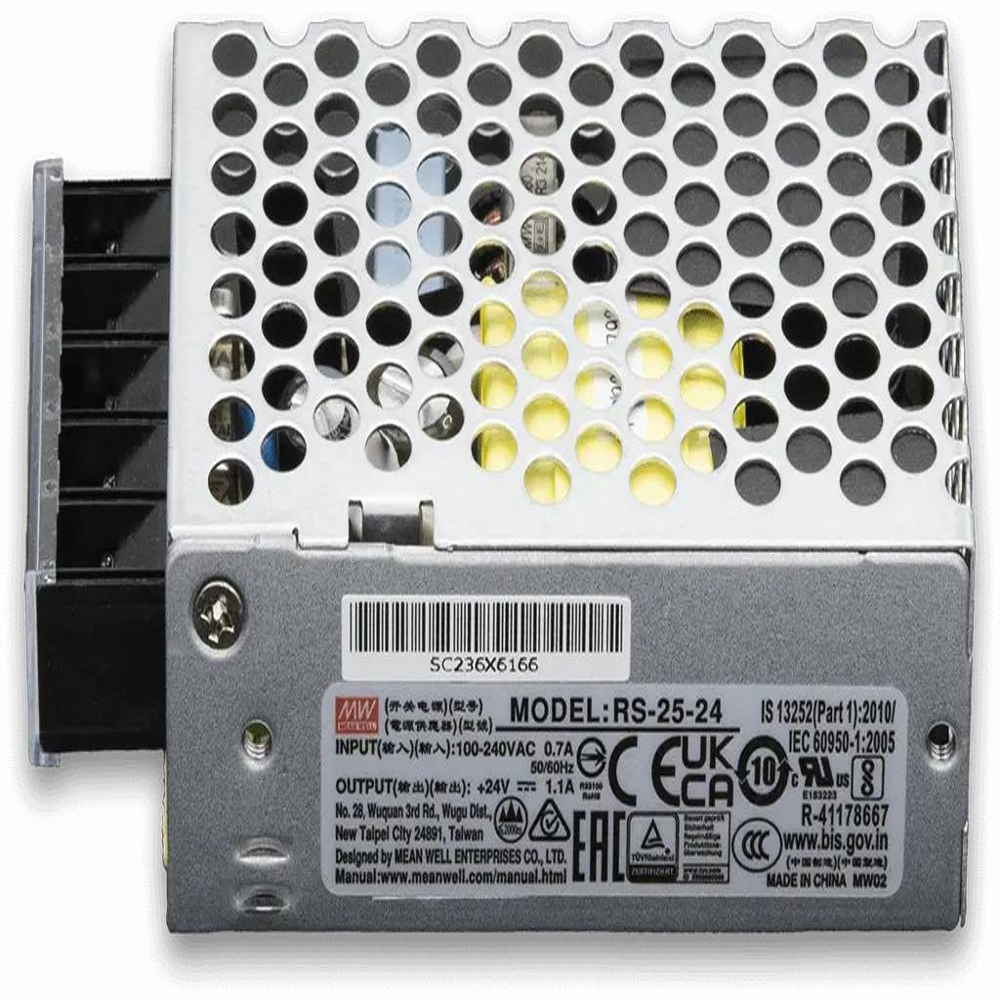

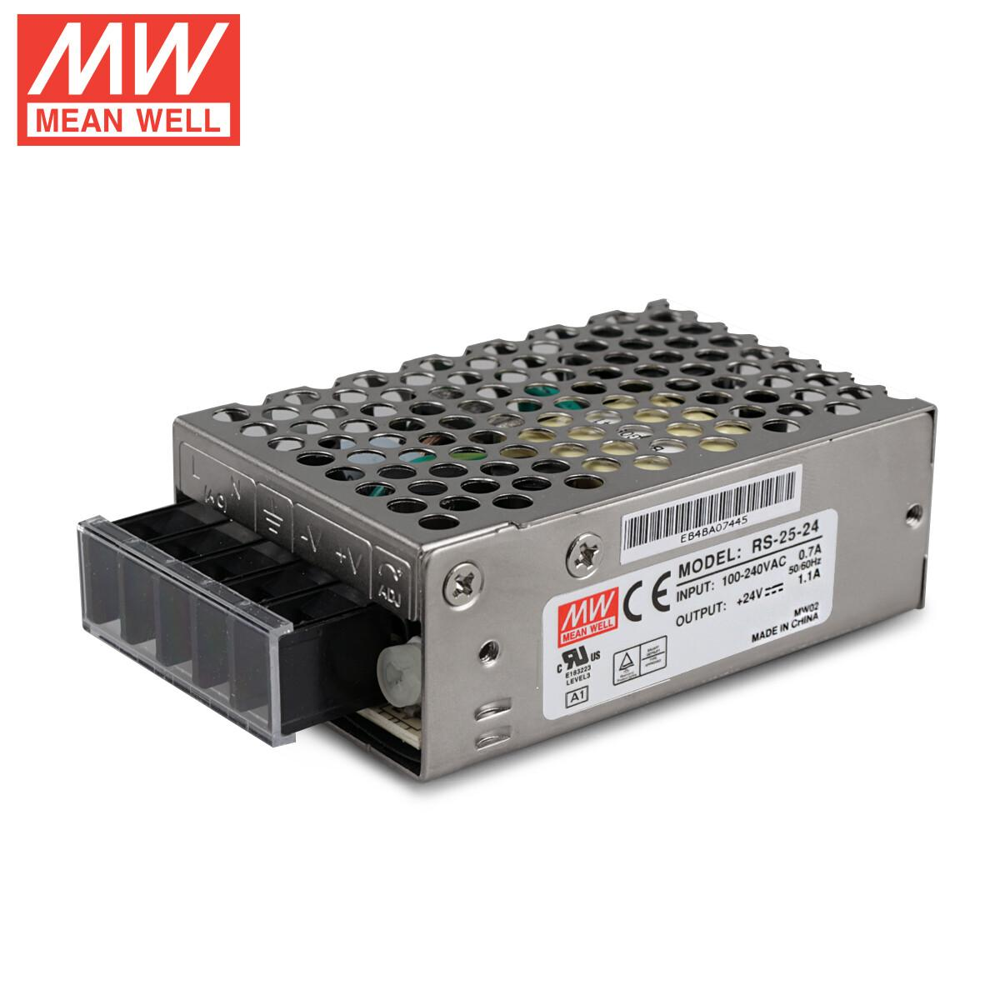

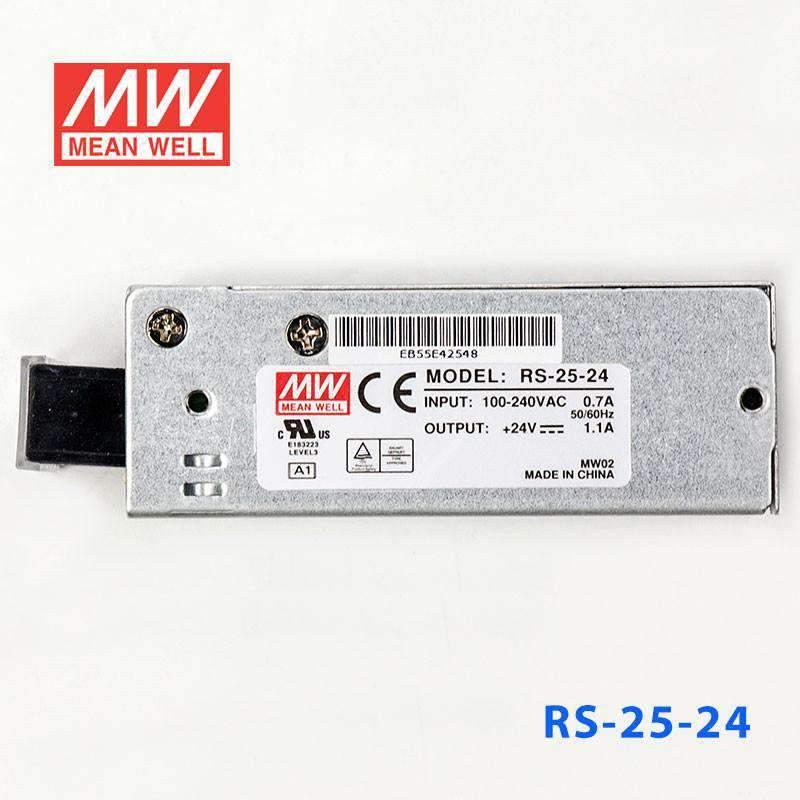

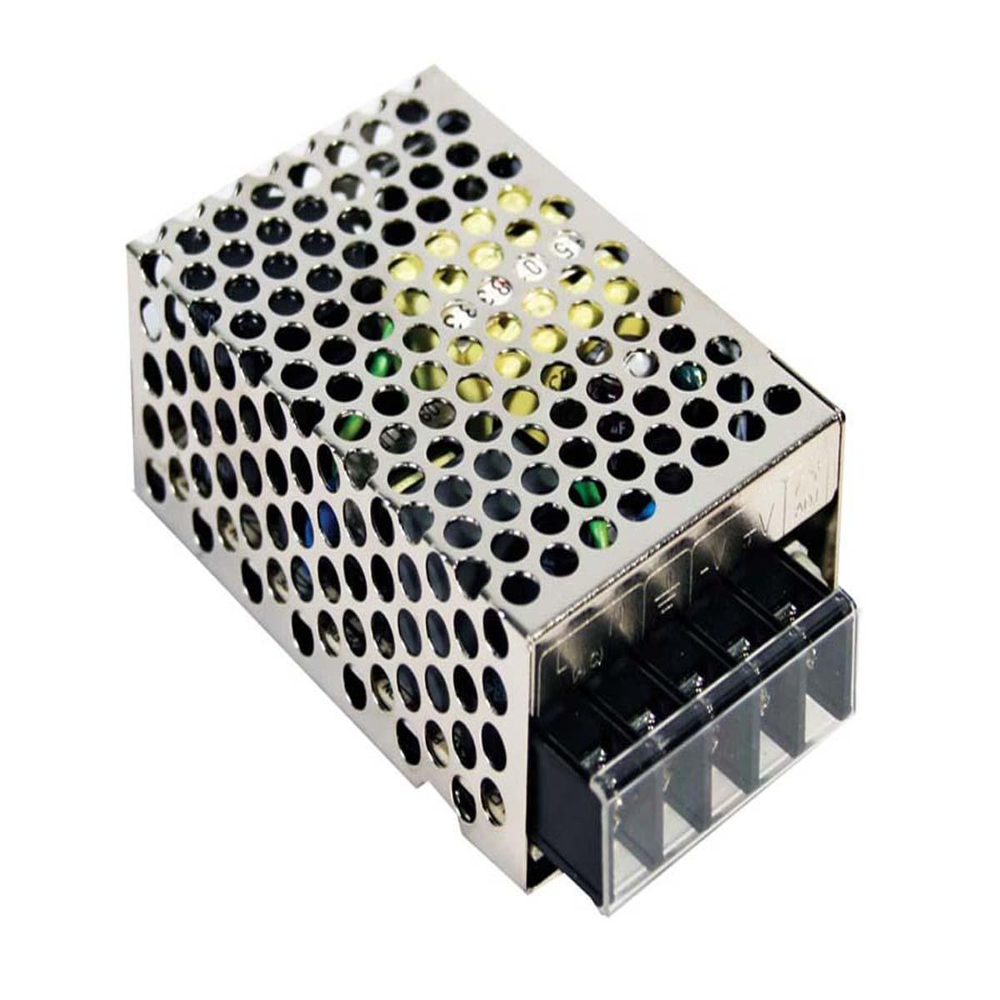

• Cooling Method
• Free air convection

• Efficiency
• Up to 84%

• Features
• LED indicator, Compact Design

• Input Voltage
• 85-264VAC (120-373VDC)

• Output Current
• 1.1A

• Output Power
• 25W

• Output Type
• DC

• Product Type
• Switching Mode Power Supply

• Voltage Protection
• Short circuit, overload, over-voltage

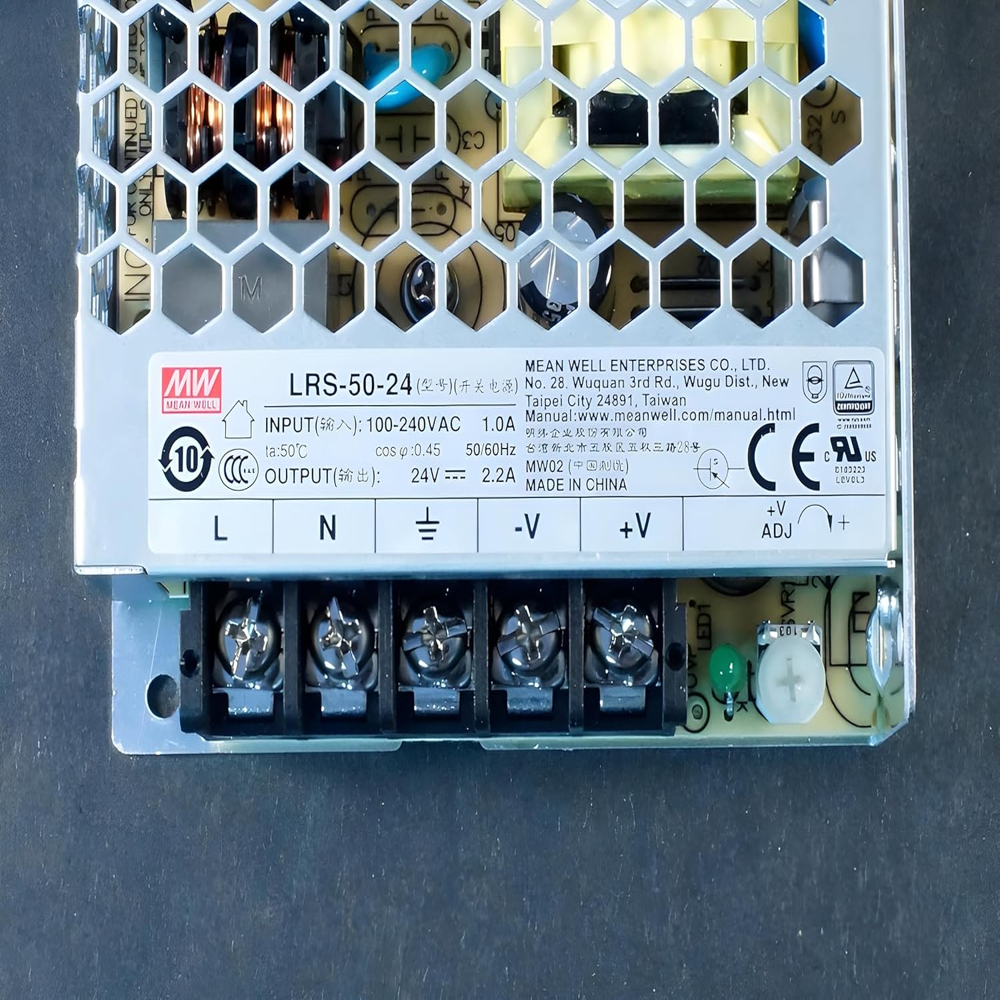

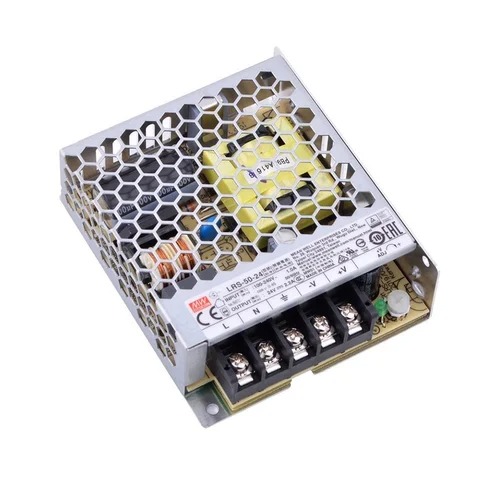

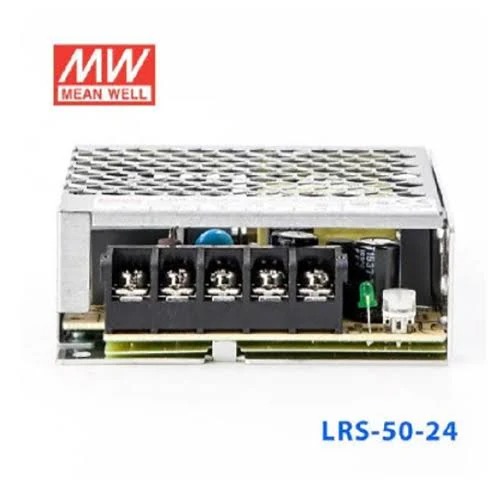

• Application
• Industrial Automation, Control Panels, LED Displays

• Connector Type
• Screw Terminal Block

• Cooling Method
• Convection cooled

• Current Range
• 0-2.2A

• Efficiency
• up to 88%

• Features
• Low profile, high efficiency, free air convection cooling

• Input Voltage
• 85-264VAC, 120-373VDC

• Line Regulation
• 0.5%

• Material
• Metal Casing

• Noise Level
• <80mVp-p

• Operating Temperature
• -30C to +70C

• Output Current
• 2.2A

• Output Frequency
• 47-63Hz (input frequency range)

• Output Power
• 52.8W

• Output Type
• Other, Single Output

• Phase
• Single Phase

• Power Factor
• 0.5 at 230VAC

• Power Supply
• AC to DC

• Product Type
• Switching Mode Power Supply (SMPS)

• Rated Current
• 2.2A

• Rated Power
• 52.8W

• Storage Temperature
• -40C to +85C

• Voltage Protection
• Overvoltage, Overload, Short Circuit

• Weight
• 210g

• Working Temperature
• -30C to +70C

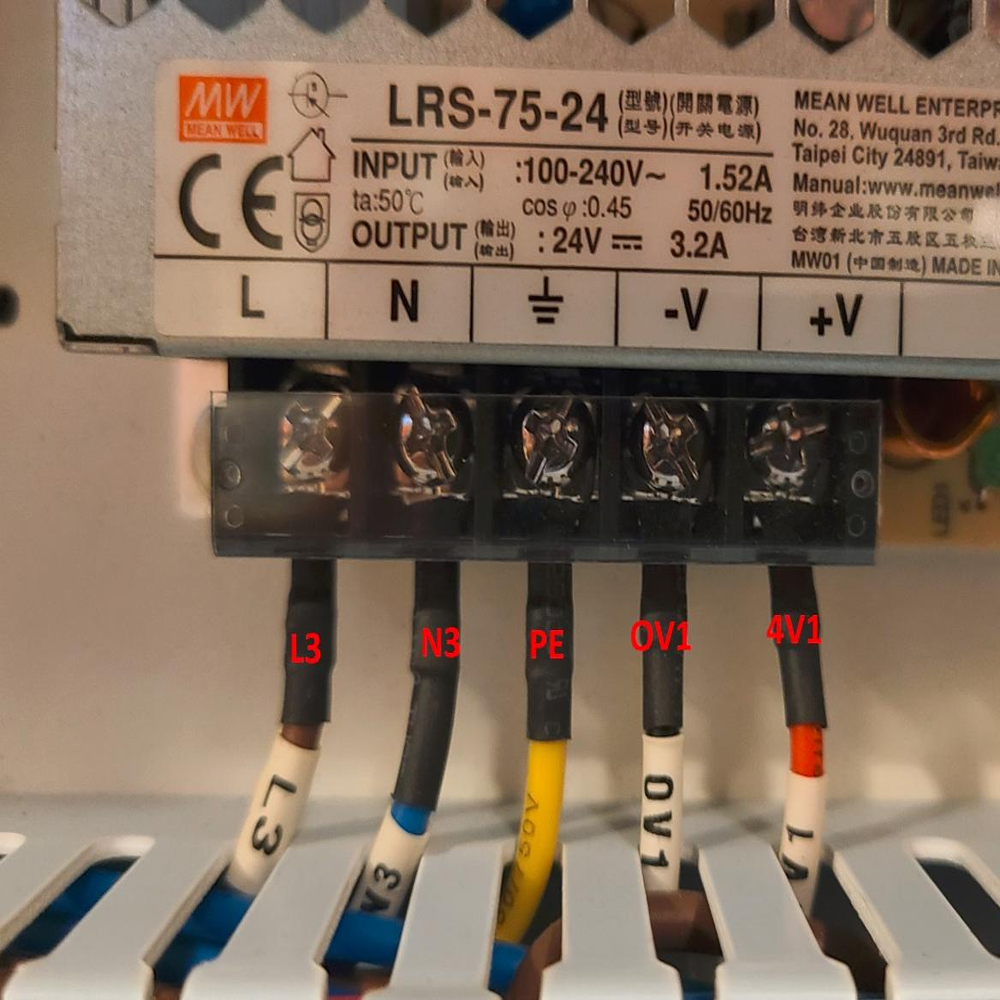

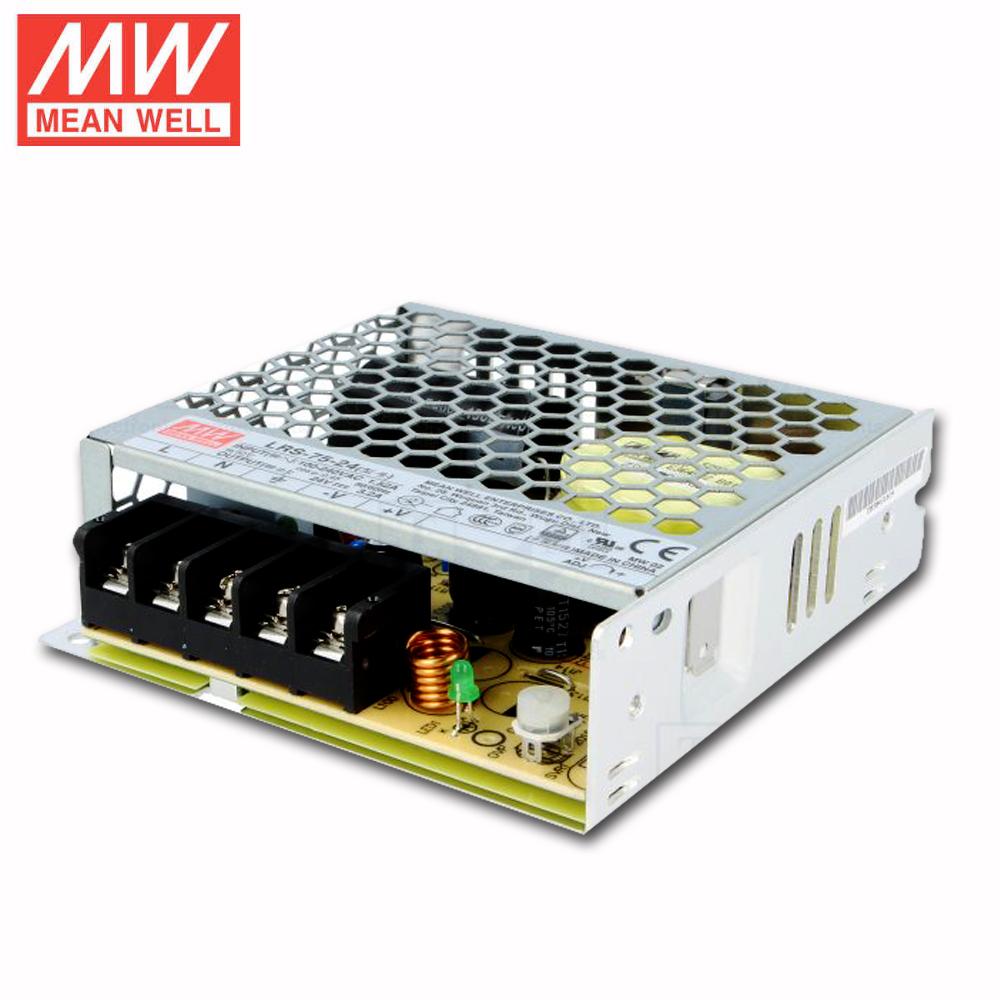

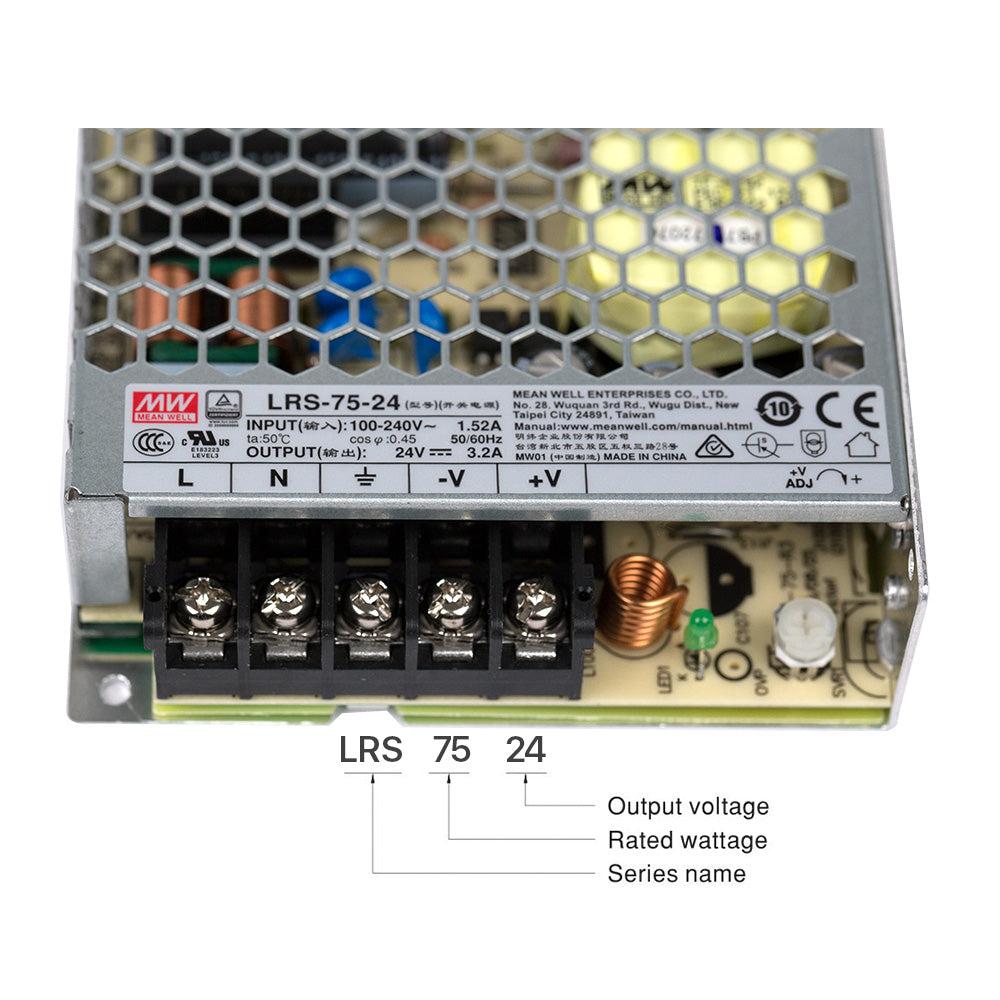

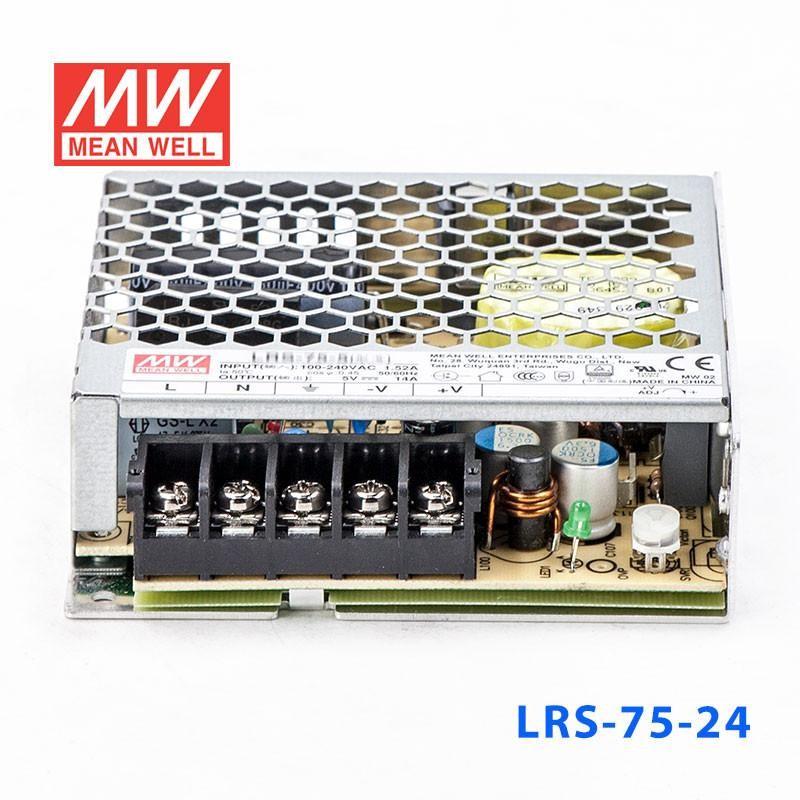

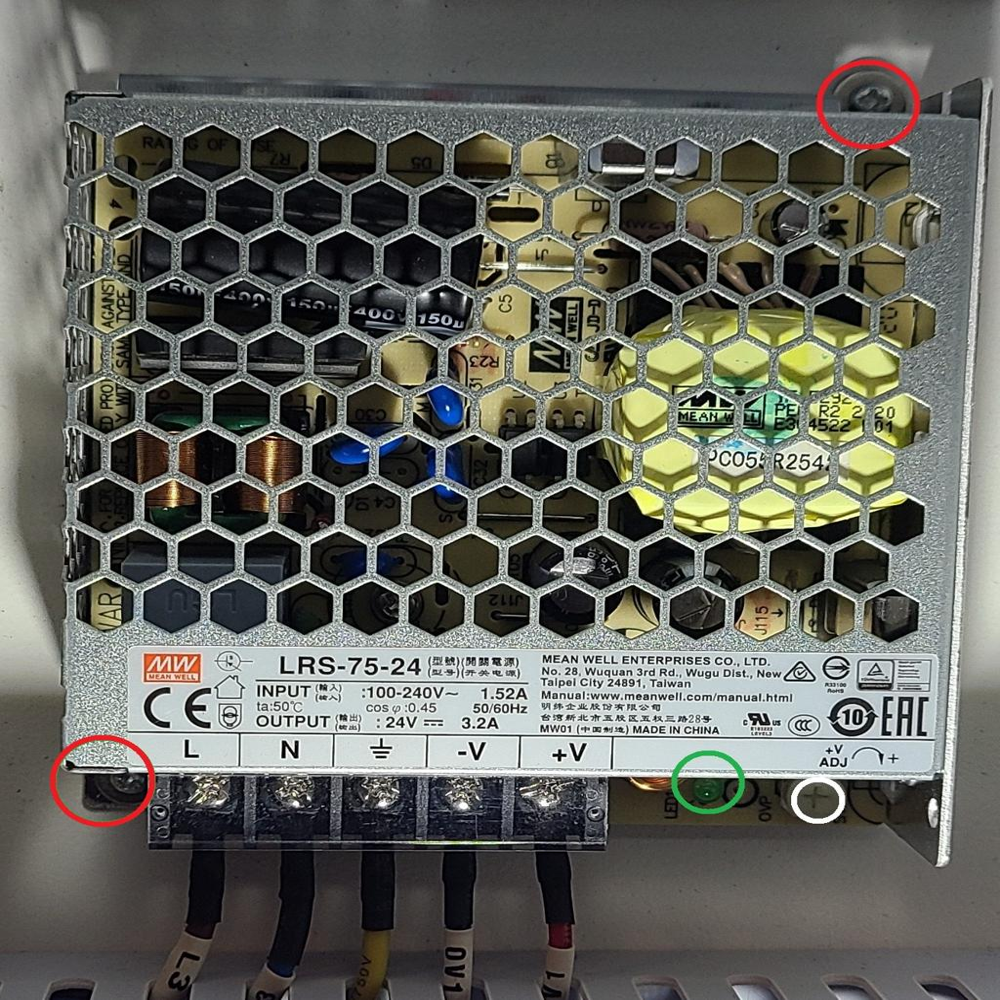

• Application
• Industrial automation, machinery

• Connector Type
• Screw terminal

• Cooling Method
• Fanless convection

• Current Range
• 0-3.2A

• Efficiency
• Up to 90% typical

• Features
• Fanless convection cooling, vibration tested

• Input Voltage
• 85-264VAC (47-63Hz), 120-373VDC

• Material
• Metal enclosure

• Noise Level
• < 150mVp-p (ripple)

• Operating Temperature
• -30C to +70C

• Output Current
• 3.2A

• Output Frequency
• 47-63Hz

• Output Power
• 76.8W max

• Output Type
• Other, Single output, DC

• Phase
• Single Phase

• Power Supply
• AC-DC

• Product Type
• Switch Mode Power Supply (SMPS)

• Rated Current
• 3.2A

• Rated Power
• 75W nominal

• Voltage Protection
• Short-circuit, overload, over-voltage (auto-recover)

• Weight
• 0.23 kg

• Working Temperature
• -30C to +70C (with derating above 50C)
