Dc To Dc Converter

• Conductor
• PCB terminals

• DC Power Supply
• Yes

• Efficiency
• Up to 96%

• Input Voltage
• 4V - 38V DC

• Load Regulation
• 0.5%

• Output Frequency
• 180 kHz (switching)

• Output Power
• Up to 75W

• Output Voltage
• 1.25V - 36V DC (adjustable)

• Product Type
• DC-DC Step-Down Adjustable Buck Module

• Ripple
• Low, <50mV typical

• Size
• Approx. 54mm x 23mm x 18mm (with heatsink)

• Usage
• Power conversion, voltage regulation

• Voltage Stability
• High (low ripple)

• Weight
• ~25g

• Cable Type
• PVC Insulated

• Conductor
• Copper

• DC Power Supply
• YES Volt-Ampere (VA)

• Display Type
• Digital

• Efficiency
• 90%

• Features
• Overload Protection

• Frequency
• 50 Hz Hertz (HZ)

• Input Voltage
• 230 V AC Volt (V)

• Load Regulation
• 1%

• Material
• ABS Plastic

• Operating Temperature
• -10 C to +50 C Celsius (oC)

• Output Frequency
• 50 Hz Hertz (HZ)

• Output Power
• 500 V Volt (v)

• Output Voltage
• 24 V DC Volt (V)

• Phase
• Single Phase

• Power Rating
• 500 W

• Product Type
• Power Supply

• Rated Current
• 5 A Ampere (amp)

• Rated Voltage
• 230 V Volt (V)

• Ripple
• 1% (or 100 mV p-p)

• Size
• 190 90 45 mm

• Usage
• Commercial

• Usage & Applications
• Industrial

• Voltage Stability
• 1%

• Warranty
• 1 Year

• Weight
• 1 Kg Kilograms (kg)

• Cable Type
• Not Applicable

• Conductor
• Copper

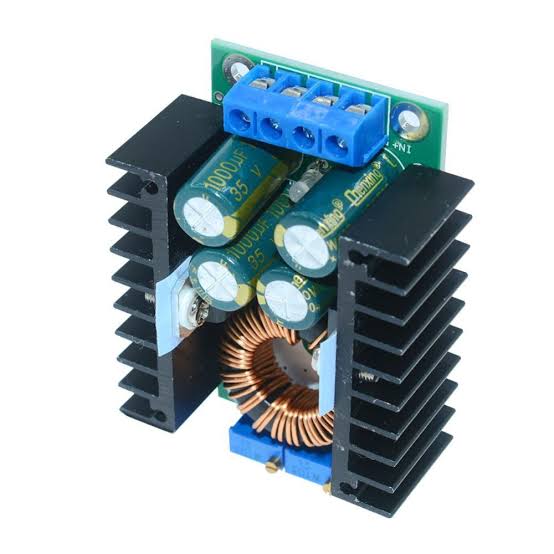

• DC Power Supply
• Yes Volt-Ampere (VA)

• Display Type
• None

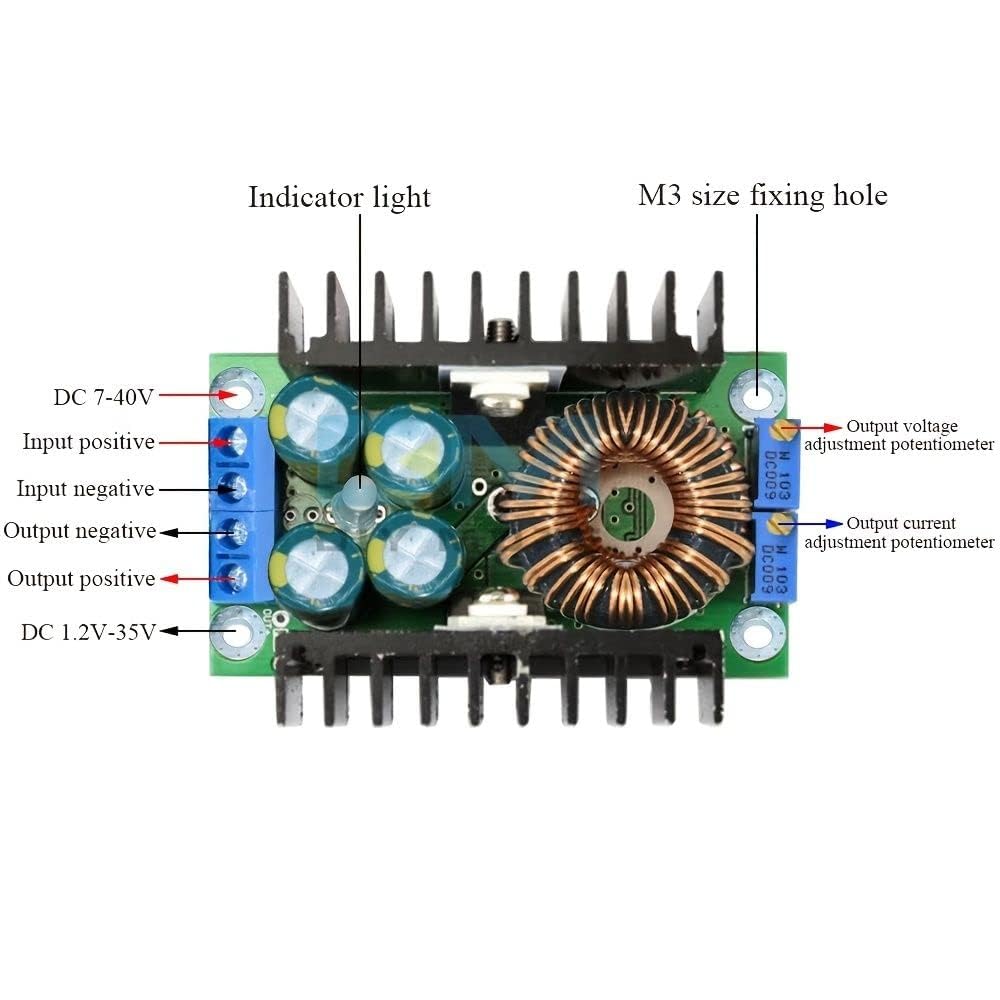

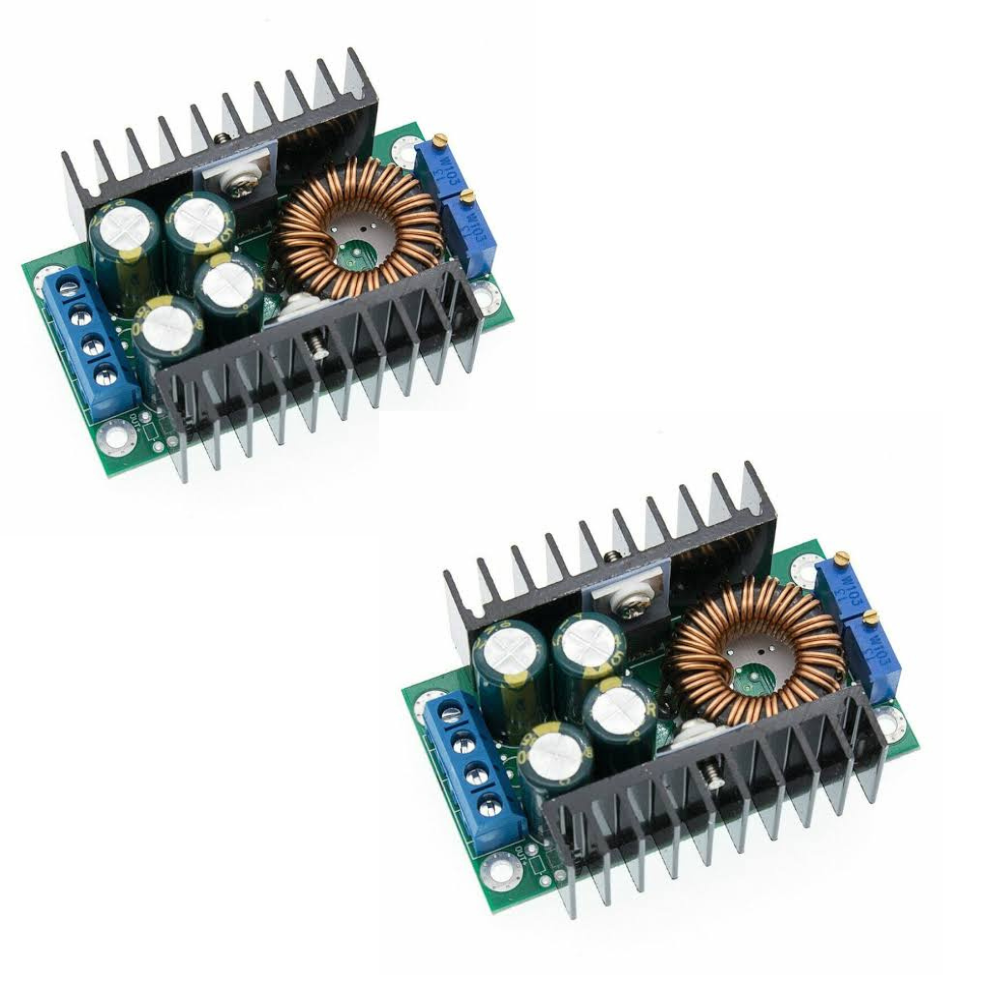

• Efficiency
• Up to 96%

• Features
• Adjustable Output Voltage, High Efficiency, Overcurrent Protection, Constant Voltage (CV), Constant Current (CC), Built-in Heatsinks

• Frequency
• 180 kHz Hertz (HZ)

• Input Voltage
• 5V 40V DC Volt (V)

• Load Regulation
• 0.5% (Typical)

• Material
• PCB, Aluminum Heatsink, Electronic Components

• Operating Temperature
• -40 C to +85 C Celsius (oC)

• Output Frequency
• 180 kHz Hertz (HZ)

• Output Power
• 300W Watt (w)

• Output Voltage
• 1.2V 35V DC Adjustable Volt (V)

• Phase
• Single Phase (DC)

• Power Rating
• 300 W

• Product Type
• DC-DC Buck Converter Module

• Rated Current
• 8A Continuous (10A Peak) Microampere (A)

• Rated Voltage
• Input: 5V 40V DC Volt (V)

• Ripple
• 50mV (Typical)

• Size
• 65 47 28 mm

• Usage
• Voltage Regulation / DC Power Supply

• Usage & Applications
• DC Voltage Step-Down, Battery Charging, LED Drivers, Solar Systems, DIY Electronics

• Voltage Stability
• 1% (Typical)

• Warranty
• 6 Month

• Weight
• 90 g Grams (g)

• Cable Type
• Flexible Cable

• Conductor
• Copper

• DC Power Supply
• 24 V DC Decibel-milliwatt (dBm)

• Display Type
• LED

• Efficiency
• 90%

• Features
• Overload Protection, Compact Design

• Frequency
• 50 Hz Hertz (HZ)

• Input Voltage
• 220 240 V AC Volt (V)

• Load Regulation
• 1%

• Material
• PVS

• Operating Temperature
• -10 C to +50 C Celsius (oC)

• Output Frequency
• 50 Hz Hertz (HZ)

• Output Power
• 100 W Watt (w)

• Output Voltage
• 24 V DC Volt (V)

• Phase
• Single Phase

• Power Rating
• 100 W

• Product Type
• Power Supply

• Rated Current
• 10 A Ampere (amp)

• Rated Voltage
• 220 240 V AC Volt (V)

• Ripple
• 100 mVp-p

• Size
• 200 100 50 mm

• Usage
• Electrical Equipment

• Usage & Applications
• Industrial & Commercial

• Voltage Stability
• 1%

• Warranty
• 1 Year

• Weight
• 1.5 kg Kilograms (kg)
