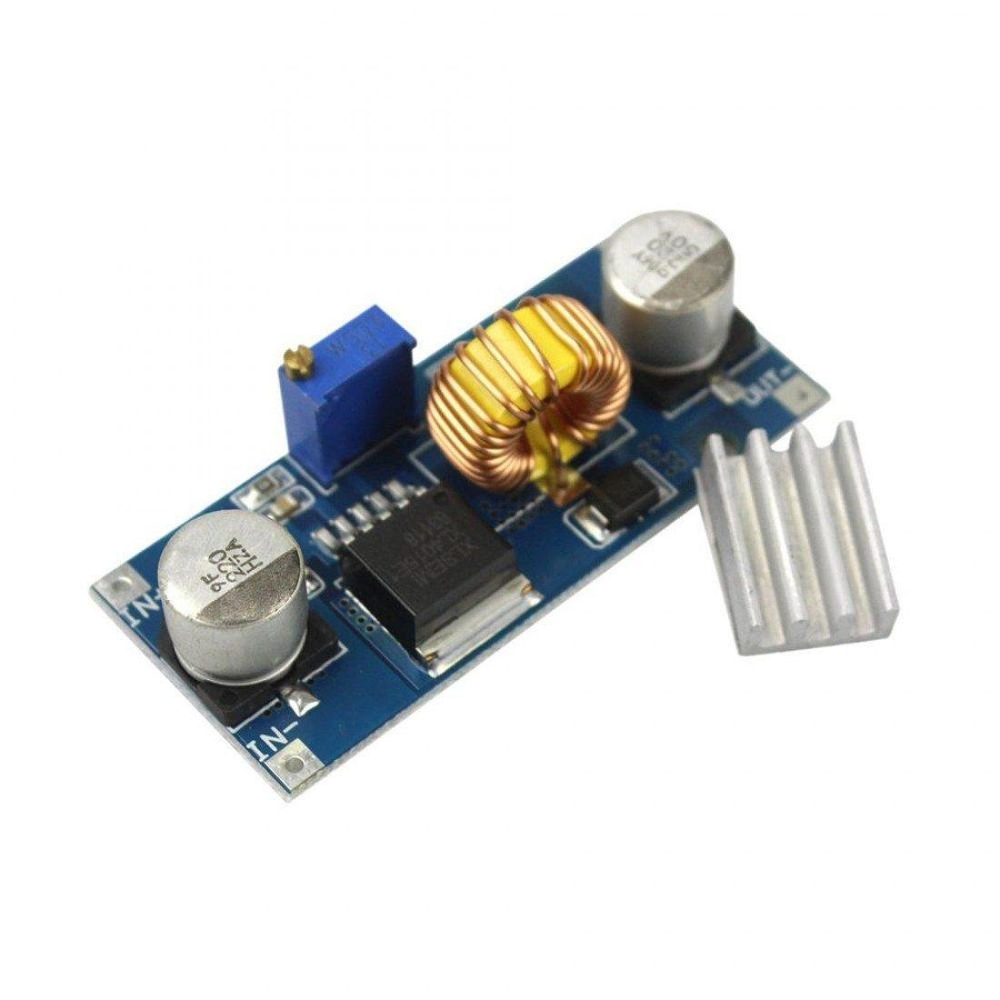

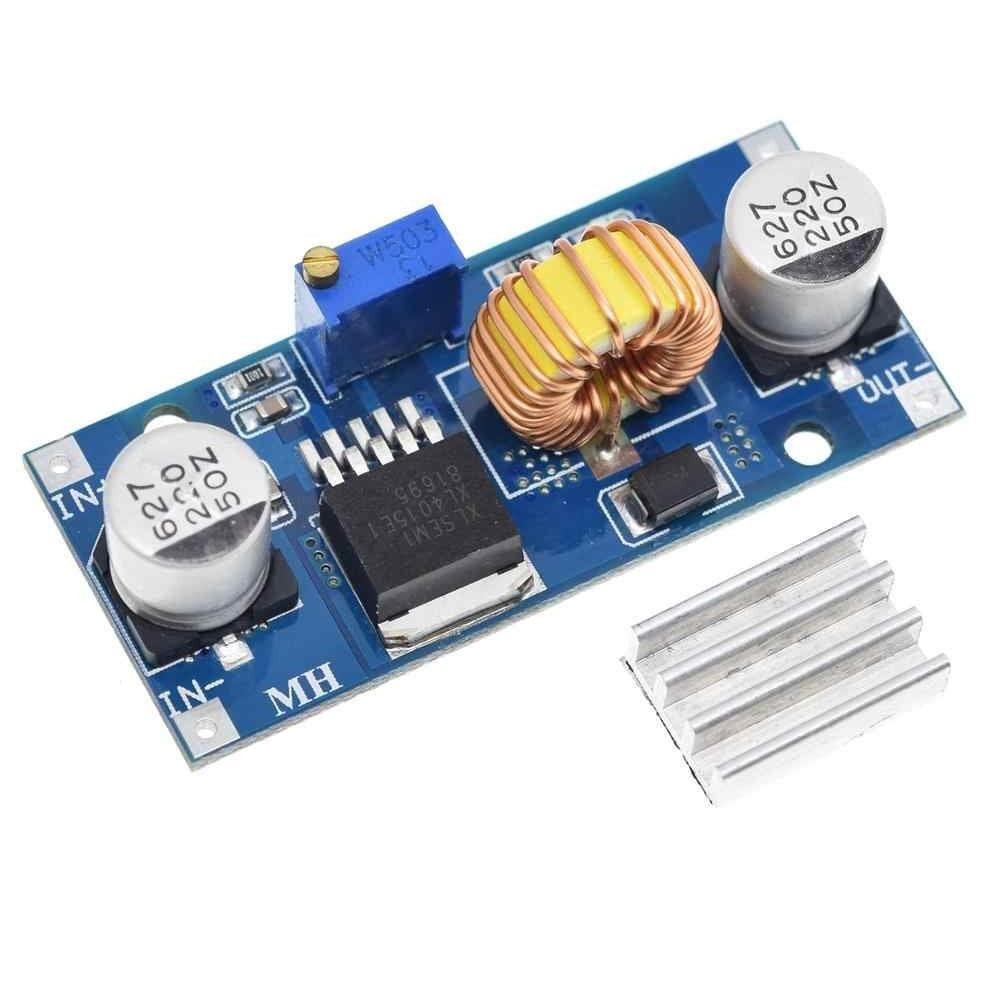

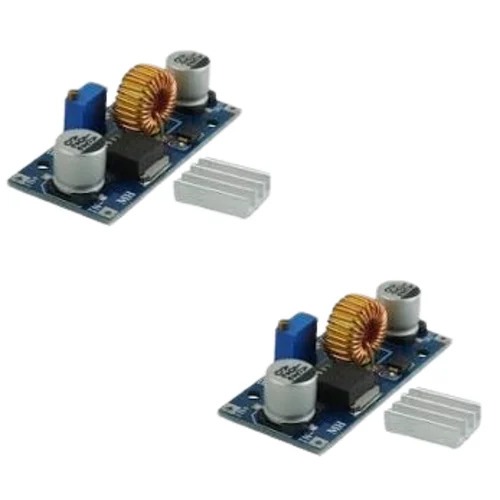

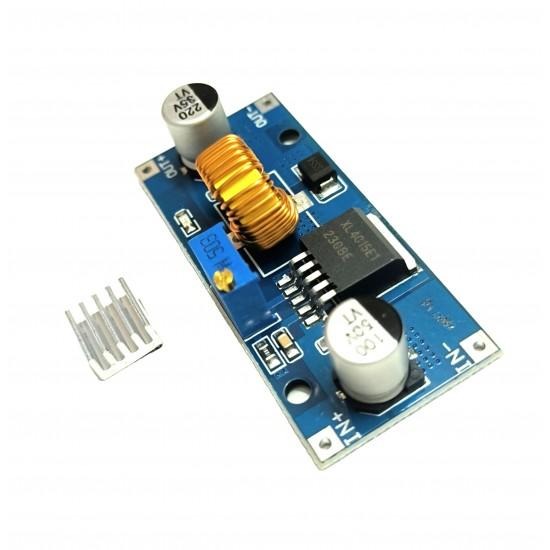

XL4015 5A DC-DC Step-Down Adjustable Power Supply Buck Module with Heatsink

Send Inquiry

Request To Call Back

XL4015 5A DC-DC Step-Down Adjustable Power Supply Buck Module with Heatsink

Name: XL4015 5A DC-DC Step-Down Adjustable Power Supply Buck Module with Heatsink
Brand: R and D Control Systems
Price: 111.0 INR
Availability: InStock

Price 111.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

XL4015 5A DC-DC Step-Down Adjustable Power Supply Buck Module with Heatsink Specification

Product Type
DC-DC Step-Down Adjustable Buck Module

Input Voltage
4V - 38V DC

Output Voltage
1.25V - 36V DC (adjustable)

Output Power
Up to 75W

Output Frequency
180 kHz (switching)

Conductor
PCB terminals

Usage
Power conversion, voltage regulation

DC Power Supply
Yes

Voltage Stability
High (low ripple)

Efficiency
Up to 96%

Ripple
Low, <50mV typical

Load Regulation
0.5%

Size
Approx. 54mm x 23mm x 18mm (with heatsink)

Weight
~25g

Over-temperature Protection
Available

Conversion Efficiency
96% peak

Non-isolated Module
Yes

Topology
Buck converter

Temperature Range
-40C to +85C

Mounting Holes
Yes

Package Type
Chassis mount

Adjustable Output
Yes, via potentiometer

Output Current
Max 5A (4.5A recommended)

Heatsink
Included

XL4015 5A DC-DC Step-Down Adjustable Power Supply Buck Module with Heatsink Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About XL4015 5A DC-DC Step-Down Adjustable Power Supply Buck Module with Heatsink

Experience illustrious power conversion with the XL4015 5A DC-DC Step-Down Adjustable Power Supply Buck Module, a best-seller celebrated by laurate engineers and suppliers across India. Boasting splendid conversion efficiency of up to 96% and high voltage stability, this customizable chassis-mount module features a robust heatsink for optimal thermal management. With adjustable output via a convenient potentiometer, you benefit from precise control for a wide application range. Revel in the lowest price offering for a non-isolated, top-performing module designed for reliability, durability, and integration versatility.

Versatile Applications and User Directions

To utilize the XL4015 5A DC-DC Buck Module, securely mount it to a suitable chassis using the built-in holes. Adjust the output voltage with the integrated potentiometer for seamless voltage regulation in your DC-powered projects. This module is ideal for voltage regulation, battery charging circuits, LED drivers, and custom power supplies, offering splendid adaptability on PCB surfaces and electronic assembly boards. It is extensively used as a reliable power source for electronic devices, automation systems, and laboratory instrumentation.

Sample Policy & Certifications for Peace of Mind

Our sample policy ensures a smooth order processing experience; samples are available for product evaluation before large outlay commitments. Handover of orders is conducted promptly, with a strong focus on the Indian main domestic market. The XL4015 5A DC-DC Buck Module is manufactured in accordance with recognized electrical safety standards and comes with certified quality. Comprehensive documentation accompanies all shipments, ensuring reliability assurance from supplier, trader, or direct manufacturer channels.

FAQ's of XL4015 5A DC-DC Step-Down Adjustable Power Supply Buck Module with Heatsink:

Q: How can I adjust the output voltage of the XL4015 5A DC-DC Buck Module?

A: You can easily adjust the output voltage using the onboard potentiometer. Simply rotate it until the desired voltage, ranging from 1.25V to 36V DC, is reached.

Q: What applications is the XL4015 module most suited for?

A: This module is splendidly versatile, ideal for powering embedded systems, DIY projects, battery charging circuits, LED drivers, and laboratory voltage regulation setups.

Q: When should I use the heatsink included with this power supply module?

A: The heatsink should be used whenever the module operates near its maximum rating, or in continuous-heavy load applications, to ensure safe temperatures and optimal performance.

Q: Where is the XL4015 module best mounted for safety and efficiency?

A: Mount the module securely to a metal chassis or panel using the integrated mounting holes for both electrical safety and thermal dissipation.

Q: What is the process for obtaining product samples?

A: To request a sample, contact your authorized supplier or trader. Orders are processed efficiently, with handover usually occurring after confirmation and minimal outlay.

Q: How does the over-temperature protection benefit my setup?

A: Over-temperature protection automatically shuts down the module if it overheats, safeguarding both the device and your application from heat-related damage.
