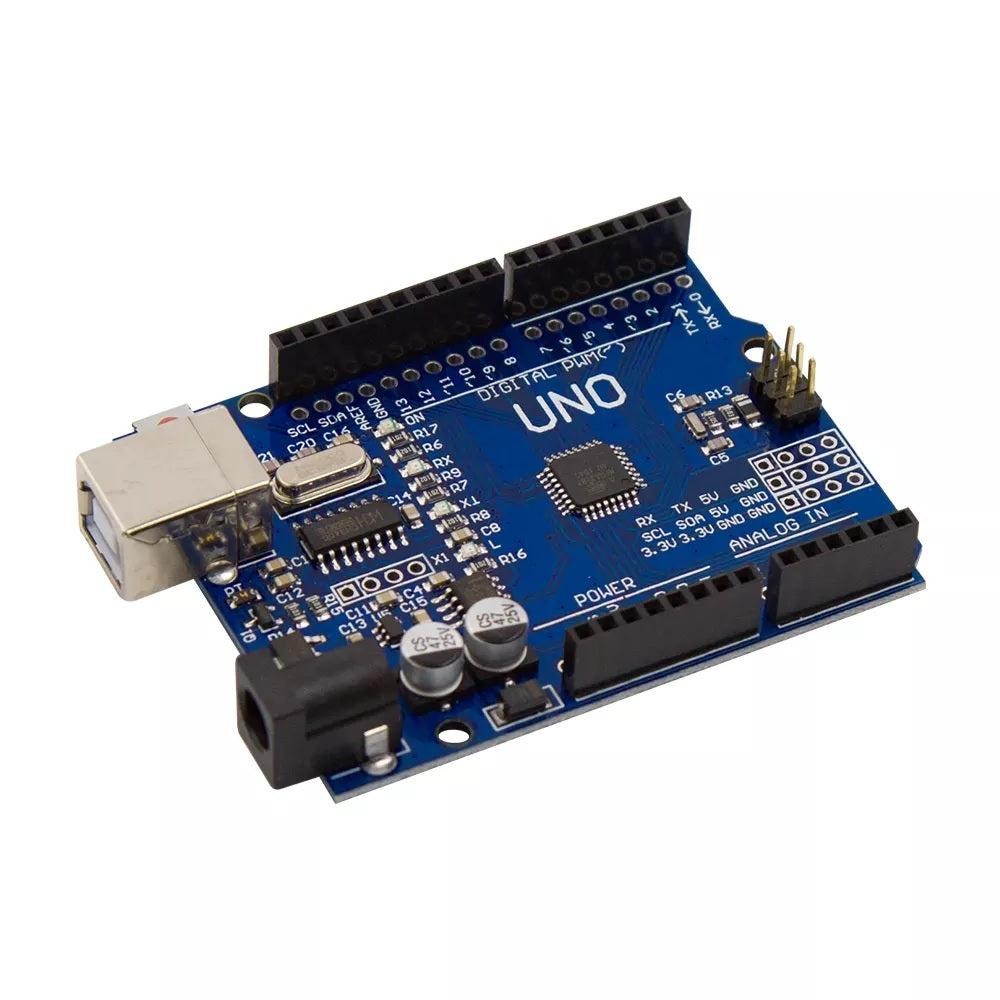

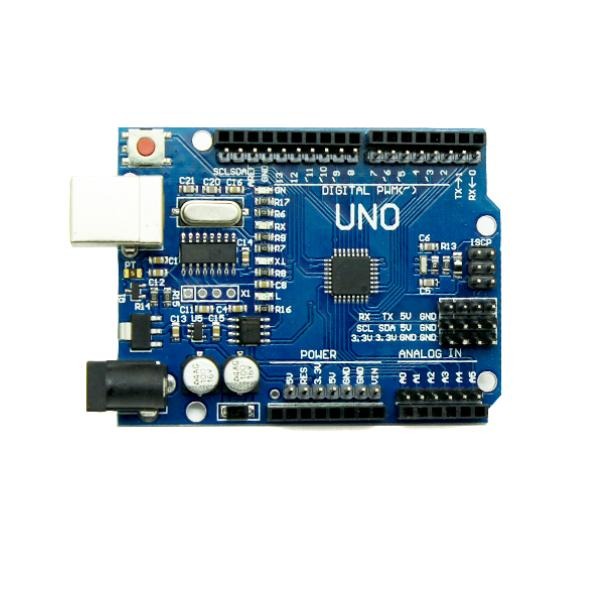

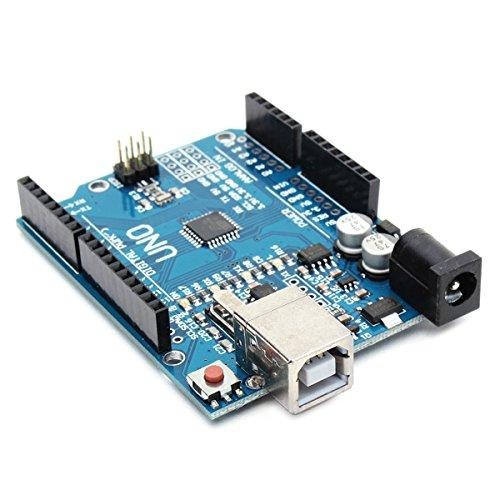

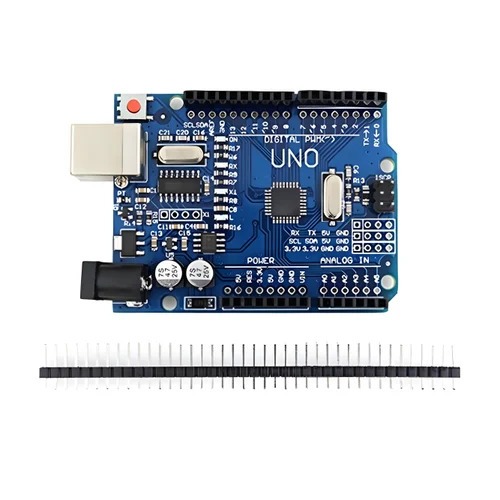

UNO SMD R3 Board ATmega328P CH340 Driver required to Install

Name: UNO SMD R3 Board ATmega328P CH340 Driver required to Install
Brand: R and D Control Systems
Price: 1299.0 INR
Availability: InStock

Price 1299.0 INR/ Piece

Get a Price/Quote

MOQ : 50 Pieces

UNO SMD R3 Board ATmega328P CH340 Driver required to Install Specification

Impedance
No controlled impedance

Hole Size
0.6mm (min)

Voltage Endurance
50V

Test
Other

Min. Line Spacing
0.2mm

Min. Line Width
0.2mm

Silkscreen
White

Board Type
Single Board

Insulation Resistance
>20 M

Flame Resistance Level
94V-0

Soldermask
Blue

Product Type
UNO SMD R3 Board

Base Material
FR4

Surface Finish
Other

Copper Thickness
35m (typical)

Board Thickness
1.6mm

Color
Blue

Panel Size
68.6mm 53.4mm

Sensor Switch
Not included

Electrical Components
ATmega328P, CH340

Number Of Layers
2

Driver Required
CH340 driver

Model Name/No.
UNO R3

Digital IO Pins
14

Analog IO Pins
6

Operating Voltage
5V

ISP Download
Supported

Programming Interface
USB/ISP

Input Voltage (limits)
7~12V

USB Port Type
USB Type-B

Supply Output
5V/3.3V rail

External Power Input
5V~9V DC

MCU
ATmega328P

PWM Channels
6

Mounting Holes
Yes

USB Driver Chip
CH340

Dimensions
Appx 68.6x53.4mm

UNO SMD R3 Board ATmega328P CH340 Driver required to Install Trade Information

Minimum Order Quantity
50 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

UNO SMD R3 Board ATmega328P CH340 Driver required to Install About

New release in the spotlight: the UNO SMD R3 Board ATmega328P featuring the advanced CH340 USB driver. With a grand design sporting a robust ATmega328P MCU, this superior board is engineered for demanding applications in education, prototyping, and automation. Take advantage of the imposing feature set, including 14 digital IO pins, 6 analog IOs, and a reliable 5V/3.3V supply rail. Enjoy the latest price cut, making high-caliber hardware more accessible. Experience industry-standard reliability, safe operation, and simplified programming, all with India-based manufacturer, supplier, and trader support.

Impressive Features and Sleek Usability

UNO SMD R3 Board ATmega328P stands out with its superior build quality, offering dual voltage output (5V/3.3V) from a single board made with FR4 base material and blue soldermask. Users can effortlessly program via USB Type-B port after installing the CH340 driver. Multiple mounting holes and E-test certified construction ensure effortless integration and durability, making it ideal for both beginners and advanced enthusiasts.

Robust Supply Chain and Quick Dispatch

Stock ready for shipment from India, the UNO SMD R3 Board is available at a competitive list price for manufacturers and exporters. Supported by reliable transport services and a strong supply ability, this board reaches customers across main export markets. FOB port convenience ensures prompt delivery and excellent customer satisfaction, making it an excellent choice for bulk inventory needs.

FAQ's of UNO SMD R3 Board ATmega328P CH340 Driver required to Install:

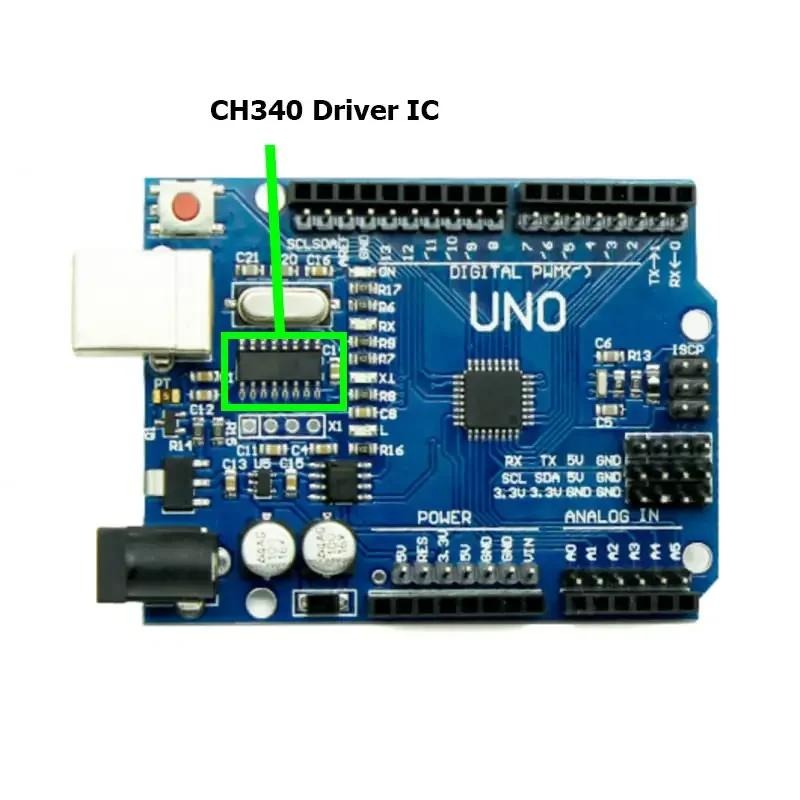

Q: How do I install the CH340 driver for the UNO SMD R3 Board?

A: To use the USB programming port, download the CH340 driver from the official website and follow the installation instructions for your operating system. This enables your computer to recognize the board for programming.

Q: What are the main features of the UNO SMD R3 Board ATmega328P?

A: This board includes an ATmega328P microcontroller, 14 digital IO pins, 6 analog inputs, dual voltage outputs, a CH340 USB interface, with dimensions of 68.6x53.4mm, making it versatile for various electronic projects.

Q: Where can this board be used effectively?

A: Ideal for prototyping, educational projects, and home automation, the board's compact size and comprehensive IO support allow for flexible integration into new or existing circuits.

Q: When will my UNO SMD R3 Board order be shipped?

A: With stock ready availability and reliable transport services from India, orders can be shipped promptly, often through preferred FOB ports for faster delivery.

Q: What materials and quality checks ensure board durability?

A: Manufactured using FR4 base material, HAL surface finish, and dual-layer construction, each board passes E-test protocols and features white silkscreen markings for longevity and clear identification.

Q: How does using this board benefit my project development process?

A: Its user-friendly programming interfaces, robust build, and comprehensive electrical features streamline prototyping and reduce setup time, enhancing project efficiency and reliability.
